Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

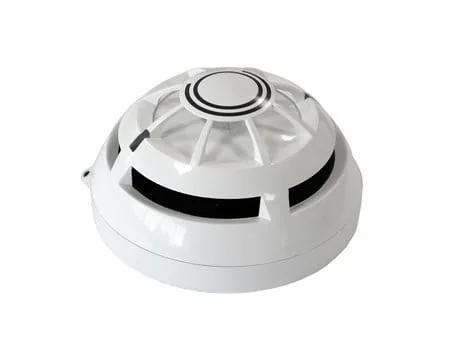

Authorised distributor for ApolloApollo Soteria Tri-Sensor Detector (Dual Optical/Heat/CO)
An addressable detector with three methods of detection: dual optical smoke sensing, a central heat thermistor and a carbon monoxide (CO) sensor, for accurate smoke detection that discriminates against false alarm sources.
- Dual optical, heat and CO sensing
- 5 modes of sensitivity
- DIL switch addressing
- Discovery and CoreProtocol compatible
- 17 to 35 V dc supply, -10 to 55°C, IP40
- LPCB and CPR approvals
Standards and approvals: LPCB, CPR
Specifications
Specifications
| Specification | SA5100-810APO |
|---|---|
| Colour | White |
| Weight | 105g |
| Product length | 55mm | 2.17in |
| Product diameter | 103mm | 4.06in |
| Quiescent current | 600μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 35V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
| Humidity (max) | 90%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 90% (no condensation or icing) |
| Operating temperature | -10 to 55°C | 14 to 131°F |
| Operating temperature (max) | 55°C | 131°F |
| Operating temperature (min) | -10°C | 14°F |
| IP rating Value | IP40 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
