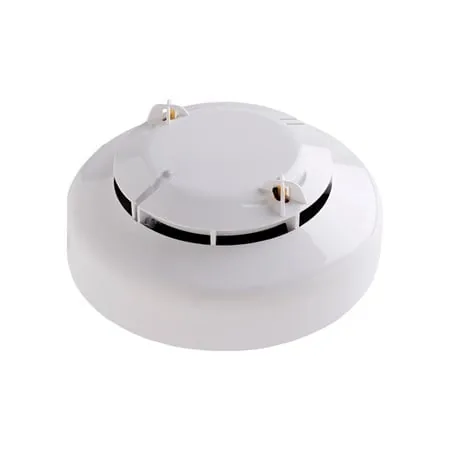

Authorised distributor for ApolloApollo Soteria Multi-Sensor Detector (Optical/Heat), White or Black
An addressable detector that combines PureLight optical smoke sensing with two thermistors for heat, responding to fast and slow burning fires and offered as an alternative to ionisation detectors. It comes in white and in black.
- Five operating modes for detection and false alarm management
- Digital CoreProtocol communication
- Dynamic algorithm for transient rejection and drift compensation
- FasTest for quicker testing
- Integrated switchable isolator
- White version certified to EN 54-5, EN 54-7 and EN 54-17; black version with CPR, LPCB, VdS and BOSEC approvals
Standards and approvals: EN 54-5, EN 54-7, EN 54-17, BOSEC, FG, LPCB, SBSC, VdS, CPR
Specifications
Specifications
| Specification | SA5100-700APO | SA5100-760APO |
|---|---|---|
| Warranty | 10 year | |
| Applications | B&Bs/guest houses, Bedrooms, Hospitals, Hotels, Medium to large buildings, Offices, Car parks/loading bays | |
| Fire Type | Fast and slow burning fires | |
| Colour | White | Black |
| Finish | Gloss | |
| Sensor configuration | Chamber with surface-mount infrared emmiter and prism., Solid state integrated photo-diode and amplifier.Dual exposed heat sensing thermistors. | |
| Weight | 96g | 100g |
| Materials terminals | Tin plated stainless steel | |
| Product diameter | 100mm | 3.94in | 103mm | 4.06in |
| Detection principle | Photo-electric light scattering.Temperature sensitive resistance. | |
| Product height (wo/base) | 38mm | |
| Analogue value nominal | 23 | |
| Analogue value (- tolerance) | 0 | |
| Analogue value (+ tolerance) | 4 | |
| Analogue value | 23 +4/-0 | |
| Alarm level analogue value | 55 | |
| Chamber type | Pure, Light | |
| Protocol voltage | 5 to 13V peak to peak | 5 to 13V peak to peak |
| Protocol voltage (max) | 13V | 13V |
| Protocol voltage (min) | 5V | 5V |
| Power-up surge current | 0.56mA | |
| Status indicator: Alarm | Red | |
| Status indicator: Fault | Flashing yellow | |
| Quiescent current | 350μA | 600μA |
| Quiescent current tested at | 24V dc | |
| Terminal functions L2 | +L2, Loop in & out positive | |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative | |
| Terminal functions L2 out | -L1 out, Loop (isolated) negative | |
| Terminal functions +R | +R, Remote indicator positive connection | |
| Terminal functions -R | -R, Remote indicator negative connection | |
| Polarity | L1 &, L2 are polarity sensitive | |
| Status indicator: Isolate | Yellow | |
| Status indicator: Poll | Green | |
| Humidity (max) | 95%, RH | |
| Humidity (min) | 0%, RH | |
| Humidity Note | no condensation or icing | |
| Humidity | 0% to 95% (no condensation or icing) | |
| Operating temperature | -40 to 70°C | -40 to 158°F | -10 to 55°C | 14 to 131°F |
| Operating temperature (max) | 70°C | 158°F | 55°C | 131°F |
| Operating temperature (min) | -40°C | -40°F | -10°C | 14°F |
| IP rating Value | IP44 | IP40 |
| Product depth | 55mm | 2.17in | |
| Supply voltage (max) | 35V dc | |
| Supply voltage (min) | 17V dc | |
| Supply voltage (Vmin-Vmax) | 17 to 35V dc |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
