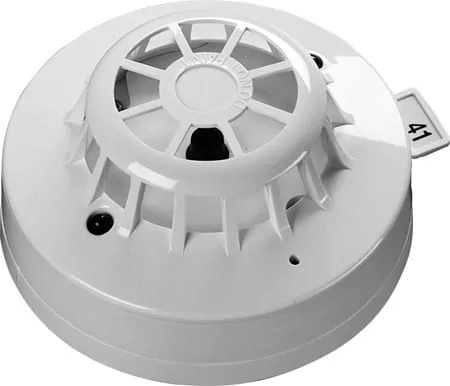

Authorised distributor for ApolloApollo Discovery Heat Detector
An addressable heat detector with a low air flow resistance case and a single thermistor that senses the surrounding air temperature, for areas that are dirty or smoky in normal use.
- Five operating modes for a range of application temperatures
- Remote test feature
- Drift compensation keeps sensitivity constant
- Operating range -40°C to +70°C, IP44
- EN 54-5, with SBSC, BOSEC, FG, VdS, LPCB, CPR and MED approvals
- 10 year warranty
Standards and approvals: EN 54-5, SBSC, BOSEC, FG, VdS, LPCB, CPR, MED
Specifications
Specifications
| Specification | 58000-400APO |
|---|---|
| Warranty | 10 year |
| Applications | Car parks/loading bays, Dusty environments, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Warehouses |
| Fire Type | Fast burning, flaming fires |
| Colour | White |
| Sensor configuration | Exposed heat sensing thermistor. |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Temperature sensitive resistance. |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1mA |
| Maximum power-up time | 10 seconds |
| Status indicator: Alarm | Red |
| Quiescent current | 350μA |
| Quiescent current tested at | 24V dc |
| Terminal functions L2 | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | +L1 in Loop in & out, double terminal |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive |
| Humidity (min) | 0%, RH |
| Humidity (max) | 95%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| IP rating Value | IP44 |
| Storage temperature (min) | -40°C |
| Storage temperature (max) | 80°C |
| Storage temperature | -40 to 80°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
