Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

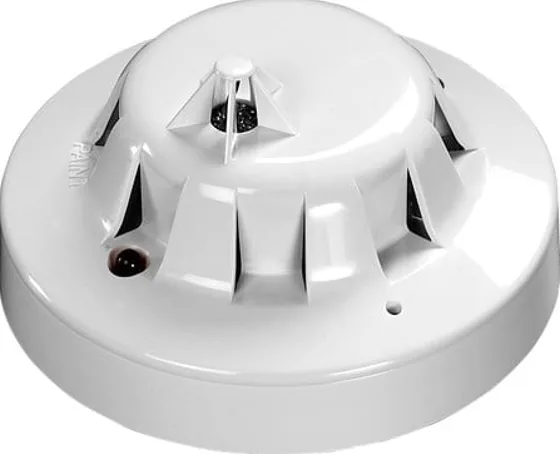

Authorised distributor for ApolloApollo Discovery Multi-Sensor Detector (CO/Heat)
An addressable detector that combines a CO detection cell and a thermistor heat sensor into one analogue value, responding to both smouldering and flaming fires.
- Responds to smouldering and flaming fires
- Less prone to false alarms from steam and dust
- Five response modes
- Remote test feature
- 0 to 50°C, IP44
- EN 54-5, with LPCB, VdS and CPR approvals, 5 year warranty
Standards and approvals: EN 54-5, LPCB, VdS, CPR
Specifications
Specifications
| Specification | 58000-305APO |
|---|---|
| Warranty | 5 year |
| Applications | Bedrooms, Hospitals, Hotels, Offices, University campuses, Warehouses |
| Fire Type | Fast and slow burning fires |
| Colour | White |
| Weight | 94.4g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 54mm | 2.13in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Temperature sensitive resistance.Ambient carbon monoxide level. |
| Analogue value nominal | 25 |
| Analogue value (- tolerance) | 2 |
| Analogue value (+ tolerance) | 2 |
| Analogue value | 25 +2/-2 |
| Alarm level analogue value | 55 |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 10 seconds |
| Status indicator: Alarm | Red |
| Quiescent current | 400μA |
| Quiescent current tested at | 24V dc |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity (max) | 90%, RH |
| Humidity (min) | 15%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 15% to 90% (no condensation or icing) |
| Operating temperature | 0 to 50°C | 32 to 122°F |
| Operating temperature (max) | 50°C | 122°F |
| Operating temperature (min) | 0°C | 32°F |
| IP rating Value | IP44 |
| Storage temperature (max) | 30°C |
| Storage temperature (min) | 10°C |
| Storage temperature | 10 to 30°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
