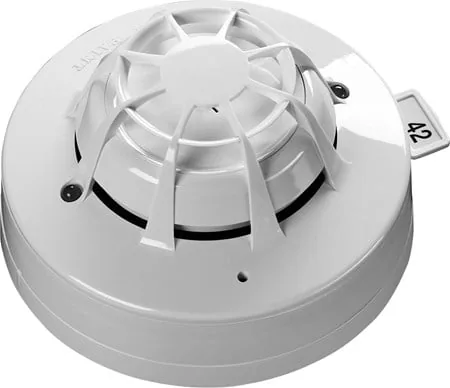

Authorised distributor for ApolloApollo Discovery Multi-Sensor Detector (Optical/Heat)
An addressable detector whose optical smoke and thermistor heat sensors give a combined signal for improved false alarm management, responding to fast and slow burning fires.
- Five operating modes
- A1R heat classification
- Drift compensation keeps sensitivity constant
- An alternative to ionisation detectors
- Operating range -40°C to +70°C
- EN 54-5 and EN 54-7, with FG, SBSC, BOSEC, LPCB, VdS and CPR approvals
Standards and approvals: EN 54-5, EN 54-7, FG, SBSC, BOSEC, LPCB, VdS, CPR
Specifications
Specifications
| Specification | 58000-700APO |
|---|---|
| Warranty | 10 year |
| Applications | Bedrooms, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Clean rooms, WarehousesB&Bs/guest houses, Cafes, Care homesHMOs, Restaurants, Small to medium buildings |
| Fire Type | Fast and slow burning fires |
| Wireless | No |
| Heat classification | A1R |
| Analogue value nominal | 23 |
| Analogue value (- tolerance) | 0 |
| Analogue value (+ tolerance) | 4 |
| Analogue value | 23 +4/-0 |
| Alarm level analogue value | 55 |
| Chamber type | Chevron |
| Colour | White |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering.Temperature sensitive resistance. |
| Product height (wo/base) | 50mm |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 10 seconds |
| Status indicator: Alarm | Red |
| Quiescent current | 470μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | +L1 in |
| Terminal functions L1 out | +L1 out |
| Polarity | L1 &, L2 are polarity insensitive |
| Humidity (max) | 0%, RH |
| Humidity (min) | 95%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 95% to 0% (no condensation or icing) |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
| IP rating Value | IP44 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
