Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

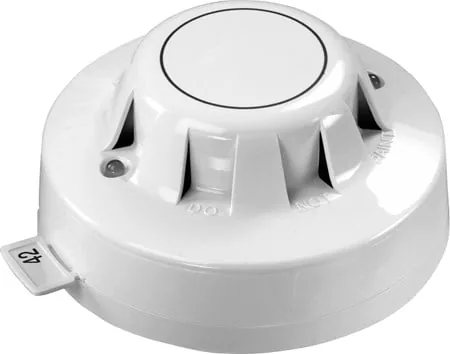

Authorised distributor for ApolloApollo Discovery Optical Smoke Detector
An addressable optical smoke detector that uses light scattering to detect fire quickly while managing false alarms, working across a wide temperature range from -40°C to +70°C.
- Five operating modes for different response needs
- Drift compensation keeps sensitivity constant
- Suited to accommodation decks, passages and escape routes
- Operating range -40°C to +70°C
- 17 to 28 V dc supply, chevron chamber
- EN 54-7, with SBSC, BOSEC, FG, VdS, LPCB and CPR approvals, 10 year warranty
Standards and approvals: EN 54-7, SBSC, BOSEC, FG, VdS, LPCB, CPR
Specifications
Specifications
| Specification | 58000-600APO |
|---|---|
| Warranty | 10 year |
| Applications | Bedrooms, Escape routes, Hospitals, Hotels, Offices, University campuses, Medium to large buildings, Restaurants, Cafes, Care homesHMOs, Listed buildings, Retail, Small to medium buildings, Warehouses |
| Fire Type | Slow burning, smouldering fires |
| Colour | White |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. |
| Analogue value nominal | 23 |
| Analogue value (- tolerance) | 0 |
| Analogue value (+ tolerance) | 4 |
| Analogue value | 23 +4/-0 |
| Alarm level analogue value | 55 |
| Chamber type | Chevron |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Status indicator: Alarm | Red |
| Quiescent current | 440μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive |
| Sampling frequency | Once per second |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -40 to 70°C | -40 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -40°C | -40°F |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
