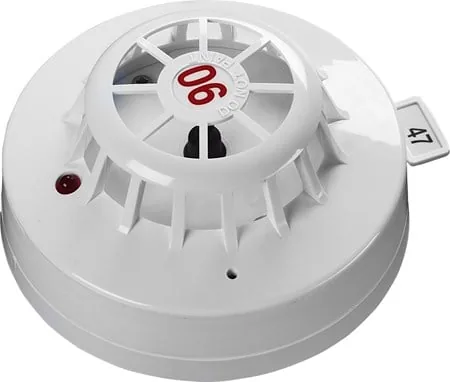

Authorised distributor for ApolloApollo XP95 Heat Detector, Class CS
An addressable heat detector in class CS, responding at a fixed temperature in the higher C band, with a single thermistor tracking the surrounding air temperature.
- Fixed temperature class CS
- For car parks, loading bays, dusty areas and warehouses
- 17 to 28 V dc supply, -20 to 70°C, IP53
- EN 54-5, with BOSEC, KRS, LPCB and CPR approvals
- 10 year warranty
Standards and approvals: EN 54-5, BOSEC, KRS, LPCB, CPR
Specifications
Specifications
| Specification | 55000-401APO |
|---|---|
| Warranty | 10 year |
| Applications | Car parks/loading bays, Dusty environments, Warehouses, Hotels, Medium to large buildings, Offices, Restaurants, Retail |
| Heat classification | CS |
| Analogue value nominal | 25 |
| Analogue value (- tolerance) | 2 |
| Analogue value (+ tolerance) | 2 |
| Analogue value | 25 +2/-2 |
| Alarm level analogue value | 55 |
| Colour | White |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 4 seconds |
| Status indicator: Alarm | Red |
| Status indicator: Fault | Off |
| Quiescent current | 250μA |
| Quiescent current tested at | 24V dc |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Terminal functions L2 | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive |
| Battery powered | No |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 70°C | -4 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP53 |
| Storage temperature (max) | 80°C |
| Storage temperature (min) | -30°C |
| Storage temperature | -30 to 80°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
