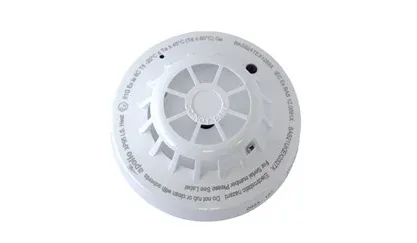

Authorised distributor for ApolloApollo XP95 I.S. Heat Detector (A2S)
An intrinsically safe addressable heat detector with a low air flow resistance case that keeps the sensing thermistor in good contact with the surrounding air, which also tells it apart from the XP95 I.S. smoke detectors.
- For hazardous areas, refineries and offshore platforms
- Low air flow resistance case
- Operating range -20 to 60°C
- Approvals include CPR, IECEx, BASEEFA, BOSEC, CCS, PESO and DNV
- 300 μA quiescent current, 10 year warranty
Standards and approvals: CPR, IECEx, BASEEFA, BOSEC, CCS, PESO, DNV
Specifications
Specifications
| Specification | 55000-440APO |
|---|---|
| Warranty | 10 year |
| Applications | Dusty environments, Hazardous areas, Medium to large buildings, Offshore platforms, Refineries |
| Colour | White |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Quiescent current | 300μA |
| Quiescent current tested at | 24V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity Note | no condensation or icing |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
