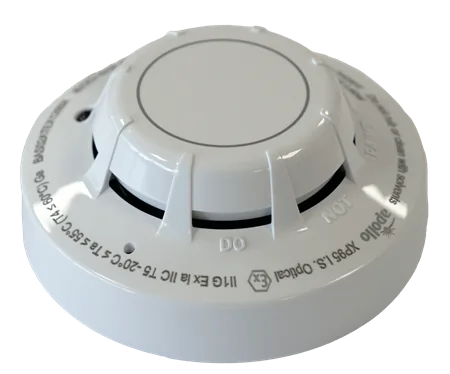

Authorised distributor for ApolloApollo XP95 I.S. Optical Smoke Detector (Intrinsically Safe)
An intrinsically safe addressable optical smoke detector for hazardous areas such as refineries and offshore platforms, using light scattering to detect slow burning and smouldering fires.
- For hazardous areas, refineries and offshore platforms
- Insect resistant screen
- Unaffected by wind and atmospheric pressure
- Operating range -20°C to +60°C
- BASEEFA, PESO (CCoE), IECEx, DNV.GL, CPR, ESC and MED approvals
- 160 μA quiescent current, 10 year warranty
Standards and approvals: BASEEFA, PESO (CCoE), IECEx, DNV.GL, CPR, ESC, MED
Specifications
Specifications
| Specification | 55000-640APO |
|---|---|
| Warranty | 10 year |
| Applications | Escape routes, Hazardous areas, Medium to large buildings, Offshore platforms, Refineries |
| Fire Type | Slow burning, smouldering fires |
| Colour | White |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Quiescent current | 160 μA |
| Quiescent current tested at | 24V dc |
| Polarity | L1 &, L2 are polarity sensitive |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
