Apollo Soteria Optical Smoke Detector
An addressable optical smoke detector using Apollo's PureLight sensing technology for false alarm management and reliability, suited to slow burning, smouldering fires.

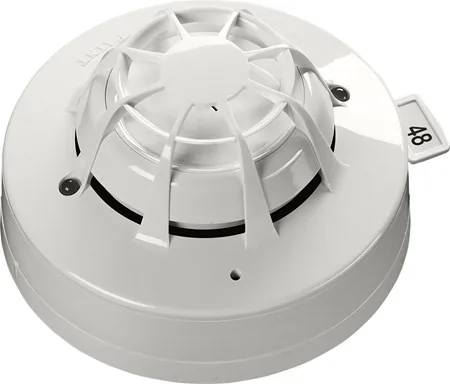

Authorised distributor for ApolloApollo XP95 Multi-Sensor Detector (Optical/Heat)
An addressable detector that combines independent optical smoke and temperature sensors for better fire detection in areas with deceptive phenomena, and serves as an alternative to ionisation detectors.
- Responds to fast and slow burning fires
- Suited to hotel bedrooms, warehouses and loading docks
- Unaffected by wind and atmospheric pressure
- Operating range -20°C to +60°C, A1R heat classification
- EN 54-7, with BOSEC, KRS, SBSC, VdS, LPCB, CPR and UL approvals
- 10 year warranty
Standards and approvals: EN 54-7, BOSEC, KRS, SBSC, VdS, LPCB, CPR, UL
Specifications
Specifications
| Specification | 55000-885APO |
|---|---|
| Warranty | 10 year |
| Applications | Bedrooms, Hotels, Medium to large buildings, Offices, Retail, Restaurants |
| Fire Type | Fast and slow burning fires |
| Heat classification | A1R |
| Analogue value nominal | 23 |
| Analogue value (- tolerance) | 0 |
| Analogue value (+ tolerance) | 4 |
| Analogue value | 23 +4/-0 |
| Chamber type | Chevron |
| Colour | White |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 105g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 50mm | 1.97in |
| Product diameter | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. |
| Product height (wo/base) | 50mm |
| Protocol voltage | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V |
| Protocol voltage (min) | 5V |
| Power-up surge current | 1mA |
| Maximum power-up time | 10 seconds |
| Quiescent current | 500μA |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP44 |
| Storage temperature (max) | 80°C |
| Storage temperature (min) | -30°C |
| Storage temperature | -30 to 80°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
