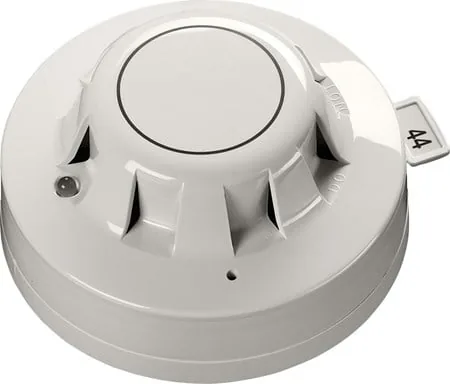

Authorised distributor for ApolloApollo XP95 Optical Smoke Detector, White or Black
An addressable optical smoke detector that uses the light scatter principle to detect slow burning and smouldering fires quickly. It is listed under two white part numbers and a black version with an insect resistant screen.
- Well suited to escape routes
- Unaffected by wind and atmospheric pressure
- Operating range -20°C to +60°C
- 17 to 28 V dc supply, chevron chamber
- Certified to EN 54-7; approvals vary by part and include LPCB, CPR, VdS, KRS and CSIRO
- 10 year warranty
Standards and approvals: EN 54-7, CPR, KRS, LPCB, FG, SBSC, VdS, BOSEC, CSIRO
Specifications
Specifications
| Specification | 55000-600APO | 55000-620APO | 55000-660APO |
|---|---|---|---|
| Warranty | 10 year | 10 year | 10 year |
| Applications | Escape routes, Hotels, Offices, Restaurants, Retail, Medium to large buildings, Bedrooms | Escape routes, Hotels, Offices, Restaurants, Retail, Bedrooms, Medium to large buildings | Escape routes, Hotels, Offices, Restaurants, Retail, Bedrooms, Medium to large buildings |
| Fire Type | Slow burning, smouldering fires | Slow burning, smouldering fires | Slow burning, smouldering fires |
| Colour | White | White | Black |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 105g | 105g | 105g |
| Materials housing | Polycarbonate | Polycarbonate | Polycarbonate |
| Materials terminals | Nickel plated stainless steel | Nickel plated stainless steel | Nickel plated stainless steel |
| Product length | 42mm | 1.65in | 42mm | 1.65in | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in | 100mm | 3.94in | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. | Photo-electric light scattering. | Photo-electric light scattering. |
| Analogue value nominal | 25 | 25 | 25 |
| Analogue value (- tolerance) | 7 | 7 | 7 |
| Analogue value (+ tolerance) | 7 | 7 | 7 |
| Analogue value | 25 +7/-7 | 25 +7/-7 | 25 +7/-7 |
| Alarm level analogue value | 55 | 55 | 55 |
| Chamber type | Chevron | Chevron | Chevron |
| Protocol voltage | 5 to 9V peak to peak | 5 to 9V peak to peak | 5 to 9V peak to peak |
| Protocol voltage (max) | 9V | 9V | 9V |
| Protocol voltage (min) | 5V | 5V | 5V |
| Power-up surge current | 1mA | 1mA | 1mA |
| Maximum power-up time | 4 seconds | 4 seconds | 4 seconds |
| Status indicator: Alarm | Red | Red | Red |
| Status indicator: Fault | Off | Off | Off |
| Quiescent current | 340μA | 340μA | 340μA |
| Supply voltage (max) | 28V dc | 28V dc | 28V dc |
| Supply voltage (min) | 17V dc | 17V dc | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc | 17 to 28V dc | 17 to 28V dc |
| Terminal functions L2 | +L2 Loop in & out positive, double terminal | +L2 Loop in & out positive, double terminal | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal | -L1 in Loop in & out, double terminal | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R, Remote indicator positive connection | +R, Remote indicator positive connection | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection | -R, Remote indicator negative connection | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive | L1 &, L2 are polarity insensitive | L1 &, L2 are polarity insensitive |
| Battery powered | No | No | No |
| Sampling frequency | Once per second | Once per second | Once per second |
| Humidity (max) | 95%, RH | 95%, RH | 95%, RH |
| Humidity (min) | 0%, RH | 0%, RH | 0%, RH |
| Humidity Note | no condensation or icing | no condensation or icing | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) | 0% to 95% (no condensation or icing) | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 60°C | -4 to 140°F | -20 to 60°C | -4 to 140°F | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F | 60°C | 140°F | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F | -20°C | -4°F | -20°C | -4°F |
| Storage temperature (max) | 80°C | 80°C | 80°C |
| Storage temperature (min) | -30°C | -30°C | -30°C |
| Storage temperature | -30 to 80°C | -30 to 80°C | -30 to 80°C |
| Effect of wind speed | None | None | None |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
