Fire Protection System (FPS), a Morley dealer in Bhopal, supplies Morley-IAS fire alarm control panels: the DXc, ZXSe and Max analogue addressable ranges, the STX and SMX panels of the Morley UL range, the LT-159 and PL-1000 compact panels, and the Morley Lite circuit panel. FPS installs, programs, commissions and maintains them across Madhya Pradesh.

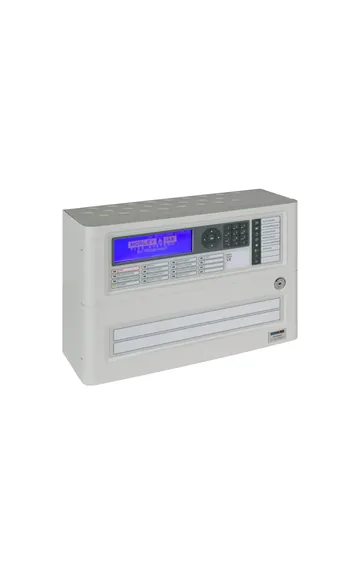

A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.

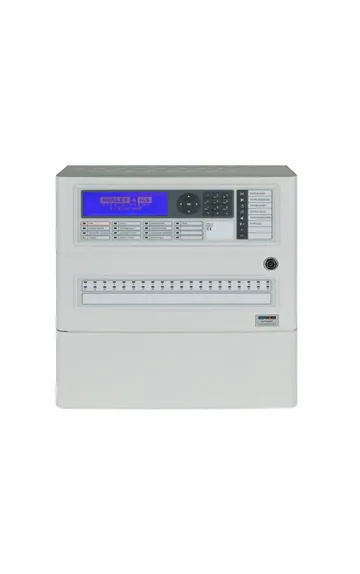

A two loop, multi-protocol analogue addressable panel from the DXc range that supports the Morley protocol and networks with other DXc panels up to 16 loops.
The four loop panel of the DXc range, with a 24V DC 4A power supply, for larger buildings or as part of a network of DXc panels up to 16 loops.
A DXc range kit that combines a compact DXc fire alarm control panel with detectors and modules, for small to medium-sized buildings, and can be configured from an Android app over Bluetooth.

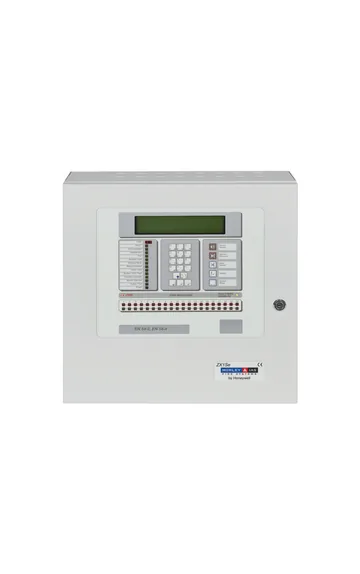

A one loop intelligent fire alarm control panel from the modular ZXSe range, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.

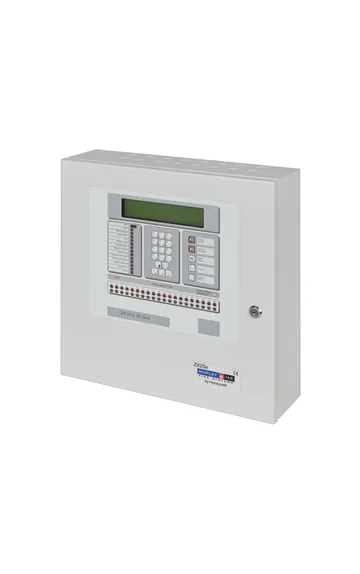

A ZXSe range panel that runs one or two loops, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.

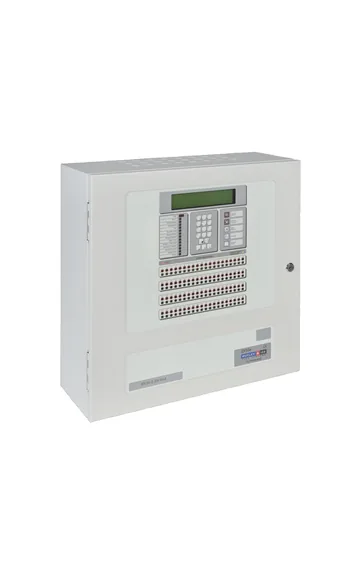

The larger ZXSe panel, with one to five loops, 4 sounder circuits and a 4 line display, for sites that need more loops or a network of panels.
The simplest panel of the Morley Max series, with two Morley-IAS loops, a 7 inch colour touch display and cause and effect logic, networkable for multi-application sites.

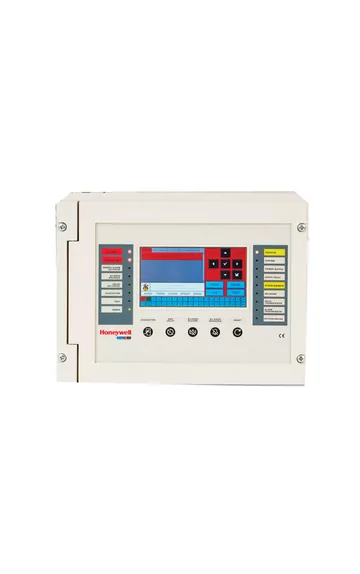

The advanced panel of the Morley Max series, with four Morley-IAS loops expandable to eight, a 200W power supply and a 7 inch colour touch display.

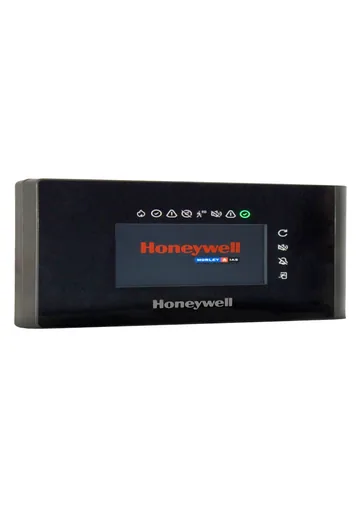

A compact touchscreen panel for up to 159 addressable devices. It is designed for Agile radio equipment and identifies the installed sensors, input modules and sounder/VADs (visual alarm devices) once it connects to the radio system gateway.

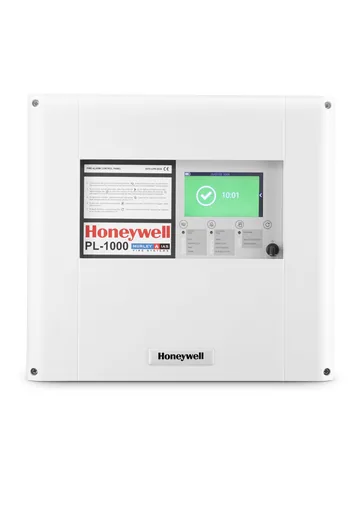

A compact analogue single loop panel, expandable to two loops, that uses Honeywell's Advanced (AP) protocol and can be fully configured from its 4.3 inch colour touchscreen.

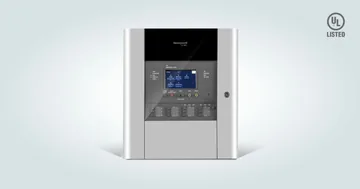

A compact intelligent panel in the Morley UL range, in a PC+ABS plastic enclosure, with a 5 inch multi-colour touchscreen and setup through mobile and PC apps over Bluetooth.

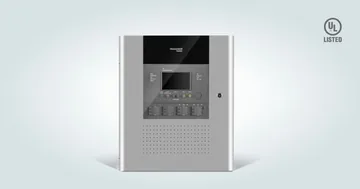

The metal bodied panel of the Morley UL range, in powder coated mild steel for a neat surface or flush finish, with a 5 inch multi-colour touch display, control keys and LED indicators.

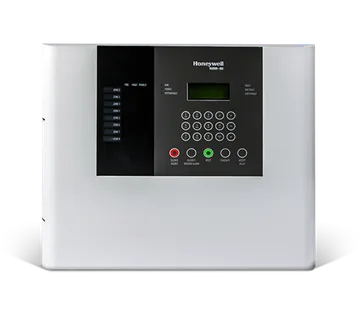

A circuit-based fire alarm panel for Morley Lite series detectors, with 2, 4, 6 or 8 Class B detection circuits, programmable relays and customisable circuit text inserts that match the building's naming.
An analogue addressable panel gives every detector, call point and module on its loop its own address, so the panel shows exactly which device is in alarm. The loop is the cable that runs out from the panel to the devices and back, carrying power and data. Morley-IAS offers panels to EN standards and to UL standards. EN 54 is the European standard series for fire detection and alarm systems: part 2 covers control and indicating equipment, part 4 power supply equipment and part 13 the compatibility of system components. The ZXSe panels list EN 54 parts 2 and 4, the Max panels EN 54-2, EN 54-4 and EN 54-13, and the DXc is part of the Morley EN range. The STX and SMX belong to the Morley UL range, which states compliance with UL 864 10th edition.
Next, size the panel to the loops you need. The DXc range has the DXc1 (one loop), DXc2 (two loops) and DXc4 (four loops), and DXc panels can network with each other up to 16 loops. The ZXSe range has the ZX1Se (one loop), ZX2Se (one or two loops) and ZX5Se (one to five loops), each loop up to 460mA. In the Morley Max series the MA-2000-04 is a dual loop panel and the MA-8000-04 has four loops, expandable to eight; both have a 7 inch colour touch display and network over CAN Bus, up to 64 panels or 128 loops.
In the UL range, the STX has a PC+ABS plastic enclosure for surface mounting and the SMX a powder coated mild steel body for surface or flush mounting; the range supports up to 159 detectors and 39 modules per loop. The LT-159 is a compact touchscreen panel for up to 159 addressable devices and is designed for Agile radio equipment. The PL-1000 is a compact single loop panel, expandable to two loops, with Honeywell's Advanced (AP) protocol and a 4.3 inch touchscreen. Morley Lite is a panel with 2, 4, 6 or 8 Class B detection circuits for Morley Lite series detectors.
FPS helps you choose the range and panel for the building, then supplies, installs, programs, commissions and maintains Morley-IAS panels in Bhopal and across Madhya Pradesh.
