Morley by Honeywell HM/PSE/S2 Photoelectric Smoke Detector (DXc and ZXSe)
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
Dealer for Morley by Honeywell
Morley by Honeywell Fire Detectors in Bhopal
Fire Protection System (FPS), a Morley dealer in Bhopal, supplies Morley-IAS smoke, multi-criteria and heat detectors for the DXc, ZXSe, Morley Max and Morley UL panels, with and without built-in isolators, plus the Morley Lite detectors. FPS installs, tests and maintains them across Madhya Pradesh.
Where to use Addressable Detectors
- Commercial buildings and office complexes
- Government offices and banks
- Malls and stores
- Factories, manufacturing and industry
- Hotels, hospitals and clinics
- Educational institutions
- Residential buildings and complexes
- Kitchens and bars, with a heat detector where a smoke detector is unsuitable
- Air ducts, for the UL smoke and multi-sensor detectors listed for duct air velocities
Morley by Honeywell Addressable Detectors models

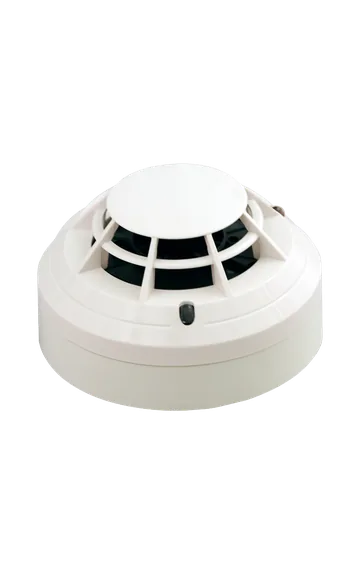

Morley by Honeywell HM/PTSE Photo-Thermal Multi-Criteria Detector (DXc and ZXSe)
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
Morley by Honeywell HM/RHSE Rate of Rise Heat Detector, Class A1R (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit, giving fixed 58°C and rate of rise (10°C per minute) detection to EN 54-5 Class A1R.

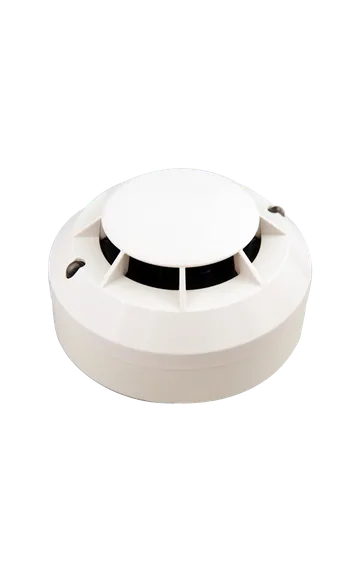

Morley by Honeywell HM/FHSE Fixed Temperature Heat Detector, 58°C, Class A1S (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit that alarms at a fixed 58°C, to EN 54-5 Class A1S.
Morley by Honeywell MI-HTSE-S2I-IV Addressable Thermal Sensor (DXc and ZXSe)
A Morley-IAS thermal sensor listed with the DXc and ZXSe panels. The datasheet linked on the maker's page is for other model numbers, so FPS confirms the details of this part before supply.

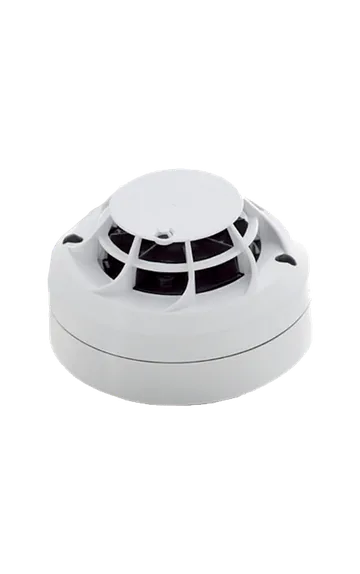

Morley by Honeywell MI-PTIR-S2-IV Photo Thermal Infra Red (PTIR) Multi-Criteria Detector (DXc and ZXSe)
A multi-criteria, multi-sensor detector that combines photoelectric smoke, thermal and infra red sensing, listed with the DXc and ZXSe panels. The maker presents PTIR as an alternative to ionisation detectors with better false alarm immunity.

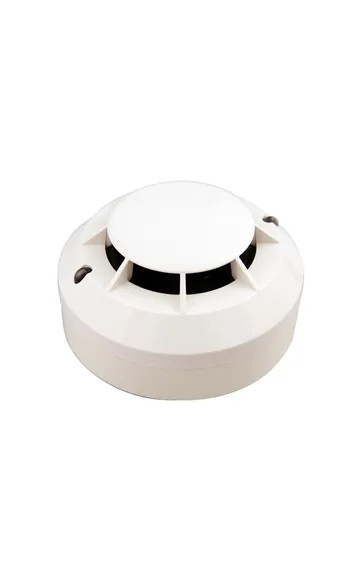

Morley by Honeywell HM-PSE-AP / HM-PSE-I-AP Photoelectric Smoke Detector (Morley Max)
The Morley Max smoke detector on the HM Series Advanced Protocol platform, offered without an isolator (HM-PSE-AP) or with a built-in isolator (HM-PSE-I-AP).

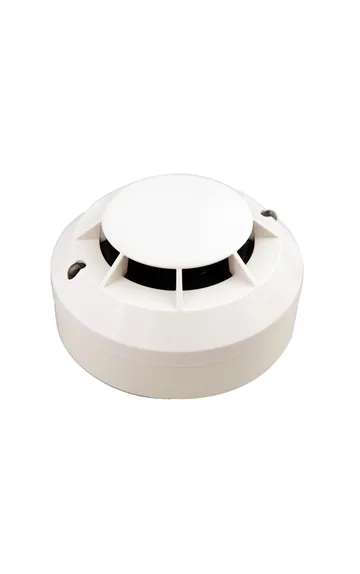

Morley by Honeywell HM-PTSE-AP / HM-PTSE-I-AP Photo-Thermal Multi-Criteria Detector (Morley Max)
A photo-thermal detector for Morley Max panels on the HM Advanced Protocol platform, in a standard version or with a built-in isolator.
Morley by Honeywell HM-RHSE-AP / HM-RHSE-I-AP Rate of Rise Heat Detector, Class A1R (Morley Max)
A rate of rise heat detector for Morley Max panels, to EN 54-5 Class A1R, in a standard version or with a built-in isolator listed to EN 54-17.

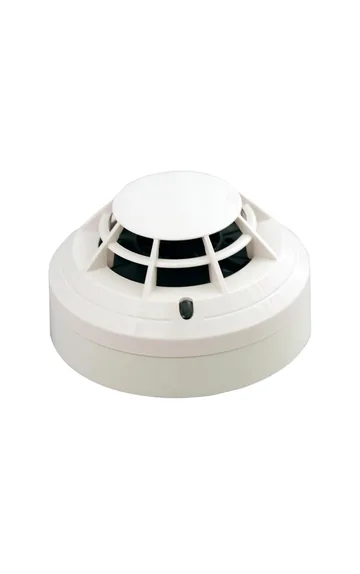

Morley by Honeywell HM-FHSE-AP / HM-FHSE-I-AP Fixed Temperature Heat Detector, Class A1S (Morley Max)
A fixed temperature heat detector for Morley Max panels, to EN 54-5 Class A1S, in a standard version or with a built-in isolator listed to EN 54-17.

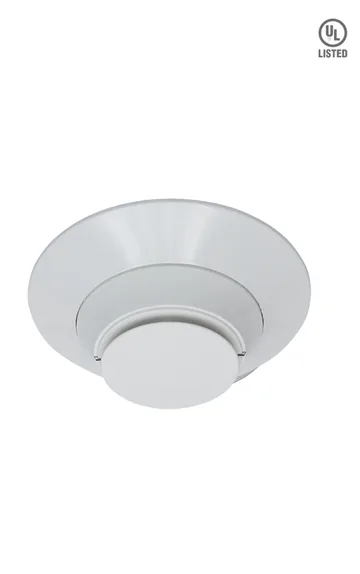

Morley by Honeywell HM/PSE/UL/W Photoelectric Smoke Detector (Morley UL)
An addressable photoelectric smoke detector for the Morley UL range, UL listed (7th edition) with the B300-6-IV base.

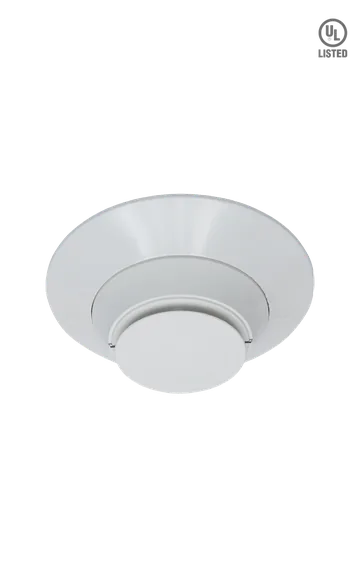

Morley by Honeywell HM/PTSE/UL/W Multi-Sensor Smoke and Heat Detector (Morley UL)
An addressable multi-sensor detector for the Morley UL range that combines photoelectric smoke sensing with fixed temperature, rate of rise and high temperature heat ratings.

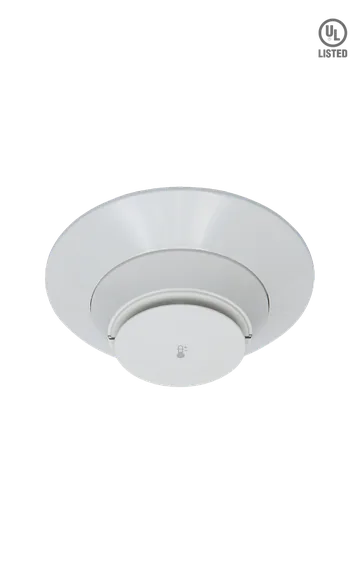

Morley by Honeywell HM/FHSE/UL/W Fixed Temperature Heat Detector (Morley UL)
An addressable fixed temperature heat detector for the Morley UL range, UL listed with the B300-6-IV base and approved for 50 ft (15.24 m) spacing.
Morley by Honeywell HM/RHSE/UL/W Rate of Rise Heat Detector (Morley UL)
An addressable heat detector with rate of rise sensing for the Morley UL range, UL listed with the B300-6-IV base.
Morley by Honeywell HM/HTSE/UL/W High Temperature Heat Detector (Morley UL)
An addressable high heat detector for the Morley UL range, UL listed with the B300-6-IV base, with an operating temperature range of -20°C to 66°C.

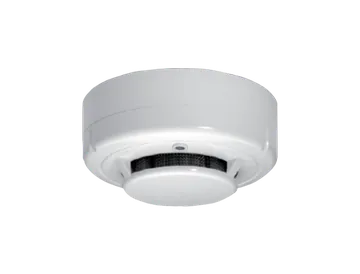

Morley by Honeywell HML/PSE Photoelectric Smoke Detector (Morley Lite)
The Morley Lite photoelectric smoke detector, with an ASIC and optical chamber for accurate detection and a high level of resilience to non-fire influences. It fits Series 100 detector bases, so existing Series 100 installations can be upgraded or extended.

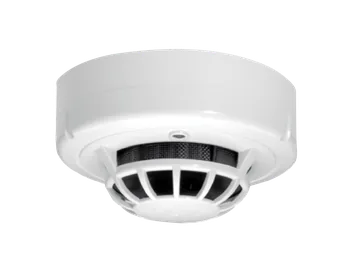

Morley by Honeywell HML/PTSE Photoelectric Smoke and Heat Detector (Morley Lite)
A Morley Lite smoke and heat detector that combines an optical chamber with a thermal element and signals an alarm only once its processor is satisfied that a fire is developing, which reduces nuisance alarms.

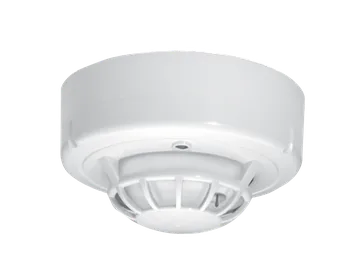

Morley by Honeywell HML/RHSE Heat Detector (Morley Lite)
A Morley Lite thermal detector for places such as bars and kitchens, where airborne contamination makes smoke detectors unsuitable. It fits Series 100 detector bases.

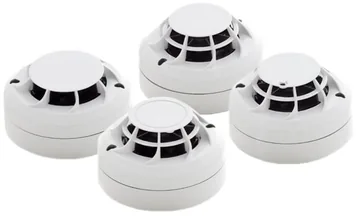

Morley by Honeywell MI-PSE-S2 Series Photoelectric Smoke Detector, Standard or Isolator (S2I)
A Morley-IAS photoelectric smoke detector series with standard and integrated isolator (S2I) versions, two tri-colour LEDs and both the standard and Advanced protocols. It is mechanically and electrically backwards compatible with existing devices.

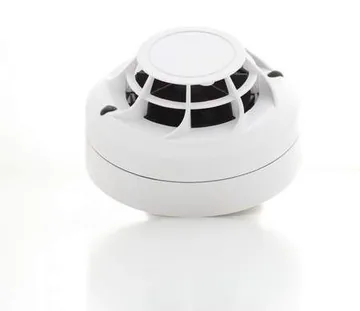

Morley by Honeywell MI-RHSE-S2 Series Rate of Rise Heat Detector, Standard or Isolator (S2I)
A Morley-IAS addressable heat sensor that alarms when the temperature rises faster than 10°C per minute (typical) or passes 58°C, Response Class A1R, with an isolator in the S2I versions.

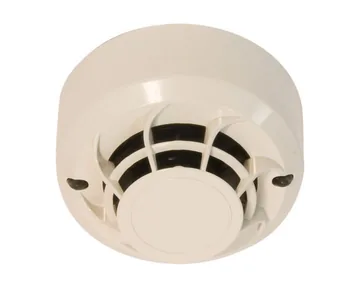

Morley by Honeywell MI-FHSE-S2 Series Fixed Temperature Heat Detector, 58°C, Standard or Isolator (S2I)
A Morley-IAS 58°C fixed temperature analogue addressable heat sensor with low mass thermistors for fast, linear temperature sensing, with an isolator in the S2I versions.
How to choose
Start with the panel, because each Morley detector line is listed with a panel range. The HM/PSE/S2, HM/PTSE, HM/RHSE, HM/FHSE, MI-HTSE-S2I-IV and MI-PTIR-S2-IV are listed with the DXc and ZXSe panels; the HM-PSE-AP, HM-PTSE-AP, HM-RHSE-AP and HM-FHSE-AP families with Morley Max; the HM/.../UL/W detectors with the Morley UL range (STX and SMX panels); and the HML detectors with the Morley Lite panel. An addressable detector has its own address on the panel's loop, so the panel shows exactly which detector is in alarm. The Morley Max detectors use the HM Advanced Protocol, which Morley says puts more devices on the loop and gives more control, configurability and device management.
Then choose the sensing type. A photoelectric (optical) smoke detector senses smoke inside its optical chamber. A photo-thermal multi-criteria detector adds a heat sensor to the smoke sensor and judges both together, which Morley uses for better false alarm immunity and faster response to a wide range of fires. Heat detectors suit places where smoke detectors would be unsuitable, such as bars and kitchens. EN 54-5 is the European standard for point heat detectors: Class A1R combines a fixed threshold with rate of rise sensing, and Class A1S is fixed temperature only. The HM/RHSE gives fixed 58°C and rate of rise (10°C per minute) sensing, the HM/FHSE a fixed 58°C response.
Next, decide on isolators. A short-circuit isolator disconnects a shorted section of the loop so the rest of the loop keeps working. In the Morley Max range each detector type comes as a standard model or an isolator model (the -I- part numbers, listed to EN 54-17), and the MI-PSE-S2, MI-RHSE-S2 and MI-FHSE-S2 series have isolator versions marked S2I. The Morley UL detectors are UL listed with the B300-6-IV base, under listing S36216 for smoke and multi-sensor models and S36217 for heat models.
FPS checks the panel range, the room use and the ceiling before choosing detectors, then supplies, installs, tests and maintains Morley-IAS detectors in Bhopal and across Madhya Pradesh.
Frequently asked questions
Which Morley detector works with my panel?
It depends on the range: HM/PSE/S2, HM/PTSE, HM/RHSE and HM/FHSE are listed with DXc and ZXSe panels, the HM-...-AP detectors with Morley Max, the HM/.../UL/W detectors with the Morley UL range and the HML detectors with Morley Lite. Send FPS your panel model and we will confirm the part number.
What is a multi-criteria detector?
It has more than one sensing element in one head and judges them together. The Morley HM/PTSE adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response.
What do Class A1R and A1S mean on a heat detector?
They are EN 54-5 heat detector classes. The Morley HM/RHSE is Class A1R, with fixed 58°C and rate of rise sensing, and the HM/FHSE is Class A1S, a fixed 58°C detector.
What does the I in HM-PSE-I-AP mean?
It marks the isolator version. The -I- detectors in the Morley Max range have a built-in short-circuit isolator and list EN 54-17, so a short on the loop is cut off without stopping the rest of the loop.
Which Morley detector suits a kitchen?
Morley describes the HML/RHSE thermal detector for places such as bars and kitchens, where airborne contamination makes smoke detectors unsuitable. For addressable systems, FPS picks the HM heat detector that matches your panel.
Does FPS supply and install Morley detectors in Bhopal?
Yes. FPS is a Morley dealer and supplies, installs, tests and maintains Morley-IAS detectors in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060.
