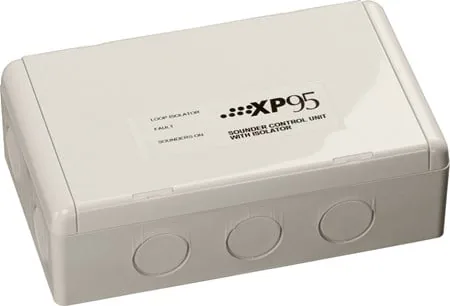

Authorised distributor for ApolloApollo XP95 AV Control Module, Isolating
Controls and monitors a circuit of conventional sounders or bells from an addressable XP95 or Discovery loop, with isolation built in.
- Drives a circuit of conventional sounders or bells
- Pulsed operation, 1 second on and 1 second off
- Can be synchronised with loop sounders
- EN 54-17 and EN 54-18 certified
- Semi flush or surface mounting, 17 to 28 V dc, designed to IP54
- FG, LPCB, VdS and CPR approvals, 10 year warranty
Standards and approvals: EN 54-17, EN 54-18, FG, LPCB, VdS, CPR
Specifications
Specifications
| Specification | 55000-852APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 240g |
| Product length | 48mm | 1.89in |
| Product width | 150mm | 5.91in |
| Product depth | 90mm | 3.54in |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Power-up surge current | 2.6mA |
| On resistance | 0.2Ω |
| Sounder circuit voltage (max) | 32V dc |
| Sounder circuit currents | 30V dc |
| Sounder circuit currents tested at | 1A |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -20 to 70°C | -4 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating | Designed to |
| IP rating Value | IP54 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
