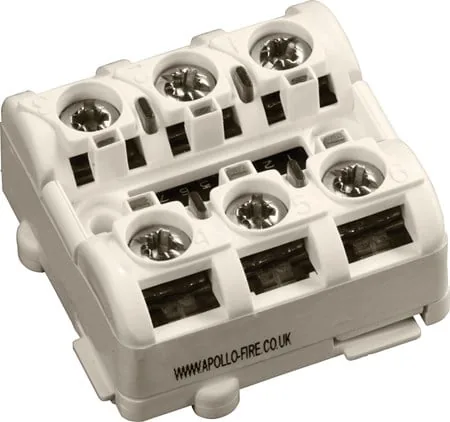

Authorised distributor for ApolloApollo XP95 DIN-Rail Mini Switch Monitor Module, Isolating
A compact DIN-rail switch monitor for tight spaces that watches one or more single pole, volt-free contacts on a single pair of cables and reports their status to the fire panel.
- Designed for use where space is limited
- DIN-rail mounting
- Priority and non-priority settings, pre-alarm status available
- EN 54-17 and EN 54-18 certified
- 17 to 28 V dc supply, -20 to 60°C
- CPR, FG, VdS and LPCB approvals, 10 year warranty
Standards and approvals: CPR, FG, VdS, LPCB
Specifications
Specifications
| Specification | 55000-760APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 31.3g |
| Product length | 20mm | 0.79in |
| Product width | 39mm | 1.54in |
| Product depth | 39mm | 1.54in |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Power-up surge current | 0.8mA |
| Quiescent current, 20kΩ EOL fitted | 0.2mA |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
