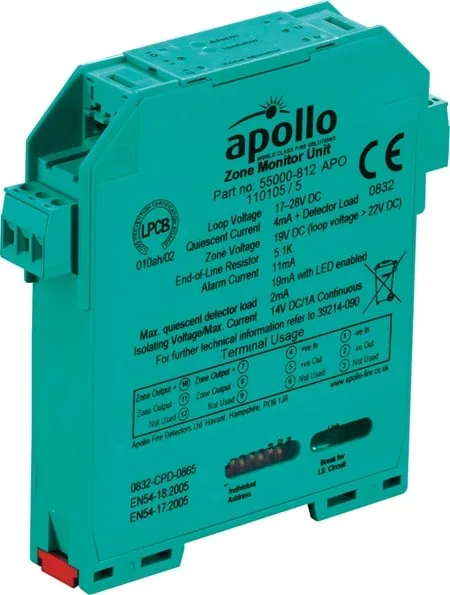

Authorised distributor for ApolloApollo XP95 DIN-Rail Zone Monitor Module, Isolating
A DIN-rail zone monitor that powers and controls a conventional zone of up to 20 Apollo Series 65, Orbis or equivalent detectors and reports their status to the fire panel.
- Adds conventional detection zones to an addressable loop
- Up to 20 Series 65, Orbis or equivalent detectors
- DIN-rail mounting, IP20
- EN 54-17 and EN 54-18 certified
- 17 to 28 V dc supply, -20 to 70°C
- FG, LPCB and CPR approvals, 10 year warranty
Standards and approvals: EN 54-17, EN 54-18, FG, LPCB, CPR
Specifications
Specifications
| Specification | 55000-812APO |
|---|---|
| Warranty | 10 year |
| Colour | Green |
| Weight | 95g |
| Product length | 110mm | 4.33in |
| Product width | 107mm | 4.21in |
| Product depth | 20mm | 0.79in |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Maximum power-up time | 4 seconds |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -20 to 70°C | -4 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP20 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
