Apollo Intelligent Input/Output Module
A loop device that monitors single pole, volt-free contact inputs and controls relay output contacts, linking the fire panel to other equipment. It works with XP95, Discovery and CoreProtocol.

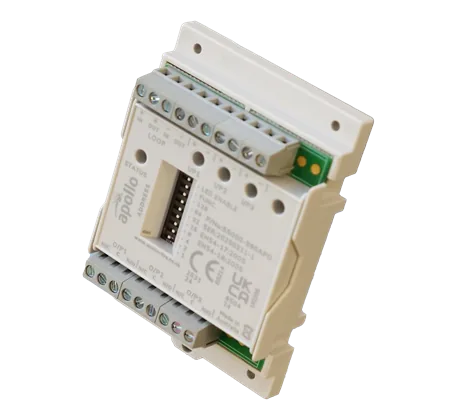

Authorised distributor for ApolloApollo XP95 Three Channel Input/Output Module, Isolating
Provides three single pole, voltage-free changeover relay outputs and three monitored switch inputs while using only one loop address, with a built-in short circuit isolator.
- Three relay outputs and three monitored inputs
- Uses a single loop address
- Built-in short circuit isolator
- EN 54-17 and EN 54-18 certified
- 17 to 28 V dc supply, 0.66 mA quiescent current
- CPR listed, white finish
Standards and approvals: CPR
Specifications
Specifications
| Specification | 55000-590APO |
|---|---|
| Quiescent current | 0.66 mA |
| Power-up surge current | 5.97 mA |
| Supply voltage (Vmin-Vmax) | 17 to 28, Vdc |
| Colour | White |
| Product height | 25mm |
| Product width | 68mm |
| Product lenght | 95mm |
| Weight | 76g |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
