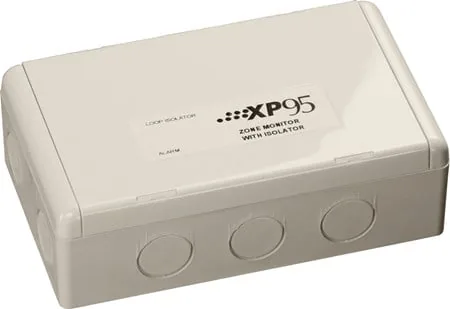

Authorised distributor for ApolloApollo XP95 Zone Monitor Module, Isolating
Powers and controls a conventional zone of up to 20 Apollo Series 65, Orbis or equivalent detectors and reports their status to the fire panel, so conventional zones can be added to an addressable system.
- Adds a conventional detection zone to an addressable loop
- Up to 20 Series 65, Orbis or equivalent detectors
- EN 54-17 and EN 54-18 certified
- Semi flush or surface mounting
- 17 to 28 V dc supply, -20 to 70°C, IP54
- VdS, FG, LPCB and CPR approvals, 10 year warranty
Standards and approvals: VdS, FG, LPCB, CPR
Specifications
Specifications
| Specification | 55000-845APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Weight | 230g |
| Materials housing | Polycarbonate |
| Product length | 90mm | 3.54in |
| Product width | 150mm | 5.91in |
| Product depth | 48mm | 1.89in |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Supply voltage (max) | 28V dc |
| Supply voltage (min) | 17V dc |
| Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Power-up surge current | 3.5mA |
| Maximum power-up time | 150ms |
| Stabilization time on power up | 4s |
| Humidity | 0% to 95% (no condensation or icing) |
| Humidity Note | no condensation or icing |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Operating temperature | -20 to 70°C | -4 to 158°F |
| Operating temperature (max) | 70°C | 158°F |
| Operating temperature (min) | -20°C | -4°F |
| IP rating Value | IP54 |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
