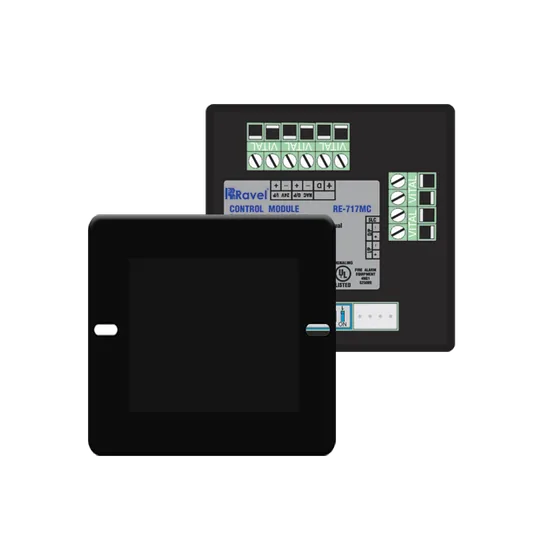

Dealer for RavelRavel Addressable Control Module (Avani Multi Loop)
An analogue addressable control module that drives conventional sounders, sounder strobes, strobes or bells, supervising both the output circuit and its power input.
- Supervised Class B, Style Y output circuit
- Several notification devices on one module
- External regulated 24 V supply
- Addressed with an 8 way DIP switch, red status LED
- Ravel states UL listing (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | RE: 717MC |
|---|---|
| Operating Voltage | 24 VDC Nominal |
| Current Draw | 2 mA Max.(Latched) |
| Standby Current | 0.5 mA |
| End of Line Resistor | 47K Ohms |
| Communication Line Loop Impedance | 40 Ohms |
| Line Loss | 4 VDC Max. |
| External Supply Voltage | Regulated 24V. |
| Max. Output Current Drive | 1 Amps.(Supervised) |
| Operating Temperature | 0°C to 49°C / 32°- 120°F |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
