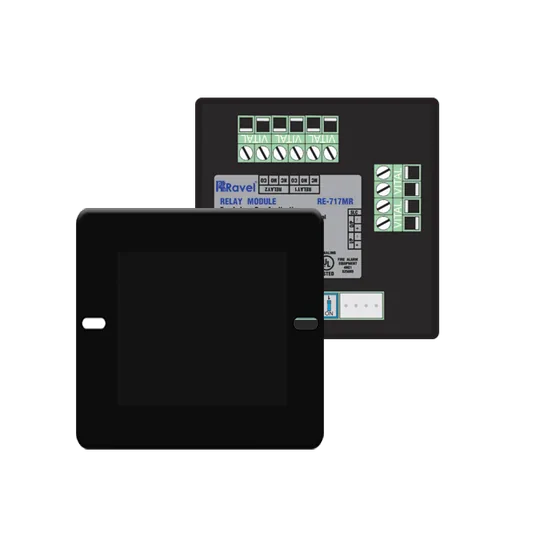

Dealer for RavelRavel Addressable Relay Module (Avani Multi Loop)
An analogue addressable relay module with two potential free contacts for switching third party systems from the Avani panel.
- Dual potential free contacts, 2 A at 30 V DC (resistive)
- Addressed with an 8 way DIP switch
- Red LED for module status
- FR ABS enclosure, wall or ceiling mounting
- Ravel states UL listing (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | RE: 717MR |
|---|---|
| Operating Voltage | 24 VDC Nominal |
| Current Draw | 2 mA Max.(Latched) |
| Standby Current | 0.5 mA |
| Contact Rating | 2A @ 30VDC(Resistive) |
| Temperature Range | 0°C to 49°C./ 32°- 120°F |
| Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
