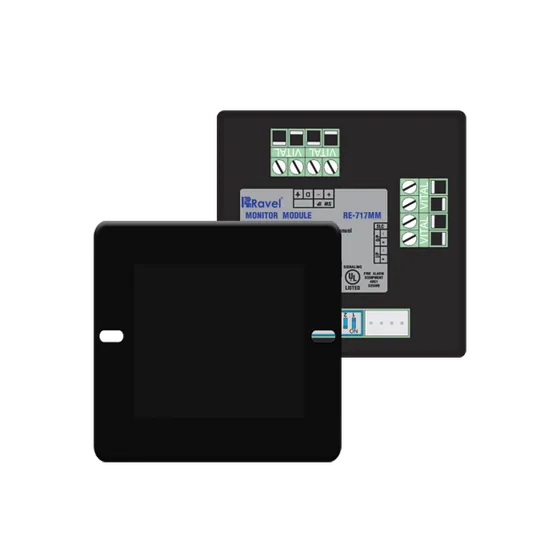

Dealer for RavelRavel Addressable Monitor Module (Avani Multi Loop)
An analogue addressable monitor module that reports when a third party contact changes from normally open to closed, with the connected circuit supervised.
- Monitors a third party contact for a change of state
- Supervised input circuit
- Addressed with an 8 way DIP switch, red status LED
- Low standby current
- Ravel states UL listing (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | RE: 717MM |
|---|---|
| Operating Voltage | 24 VDC Nominal. |
| Alarm Current | 2.7 mA Max.(Latched) |
| Standby Current | 0.7 mA |
| End of Line Resistor | 47K Ohms |
| Communication Line Loop Impedance | 40 Ohms |
| IDC wiring Resistance | 100 Ohms Max. |
| IDC Voltage | 8 V Max. |
| Temperature Range | 0°C to 49°C / 32°- 120°F |
| Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
