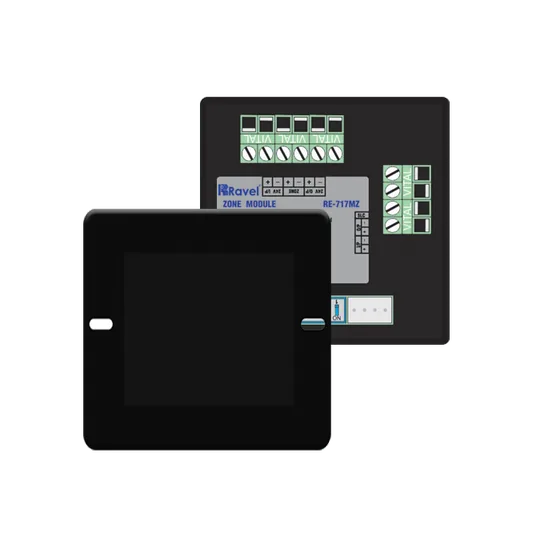

Dealer for RavelRavel Addressable Zone Module (Avani Multi Loop)
A zone interface module that connects conventional smoke, heat and multi sensor detectors, or a beam detector, to an addressable panel.
- Connects conventional detectors to the addressable loop
- Used to connect beam detectors to an addressable system
- External regulated 24 V DC supply
- Addressed with an 8 way DIP switch, red status LED
Specifications
Specifications
| Specification | RE: 717MZ |
|---|---|
| Operating Voltage | 24 VDC Nominal. |
| Current Draw(SLC) | 0.5mA, (2 mA Max.Latched) |
| External Supply Voltage | Regulated 24VDC |
| External Supply Standby Current | 5mA |
| External Supply Alaram Current | 60mA Max. |
| Communication Line Loop Impedance | 40 Ohms |
| End Of Line Resistor | 4.7K Ohms. |
| Temperature Range | 0°C to 49°C / 32°- 120°F |
| Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) MM |
| Color | Black |
| Weight | 0.5Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
