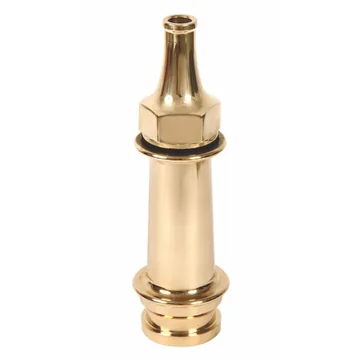

New Age Short Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Short solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.
Supplier for New Age
New Age Branch Pipes and Fire Hose Nozzles in Bhopal
Fire Protection System (FPS), a New Age supplier in Bhopal, supplies New Age branch pipes and hose nozzles: solid jet short and long branch pipes, jet, spray and fog nozzles, curtain and revolving nozzles, a UL Listed portable spray nozzle, and New Age's pistol grip nozzle range up to 100 bar.
Where to use Branch Pipes and Nozzles
- Hydrant hose points in factories, warehouses and buildings
- Hose cabinet kits, with a branch pipe or nozzle for each hose
- Fire brigade and industrial fire teams that need jet, spray and fog patterns
- Refineries, tank farms and chemical plants (spray, fog and curtain nozzles)
- Water curtains that shield people and equipment from heat (jumbo curtain nozzle)
- Class A and B fires (UL Listed portable spray nozzle)
- High pressure pump units (HAWKfire and PINfire)
- Forestry and municipal work where water use should be kept low (HAWKfire and PINfire)
New Age Branch Pipes and Nozzles models

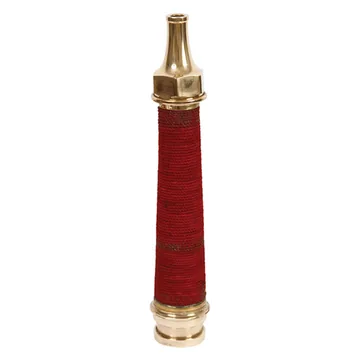

New Age Long Branch Pipe, Solid Jet
Sizes: 15 mm, 20 mm, 25 mm
Long solid jet branch pipe in gunmetal, aluminium alloy or stainless steel, with 15 mm, 20 mm or 25 mm nozzle tips and a 10 bar operating pressure.

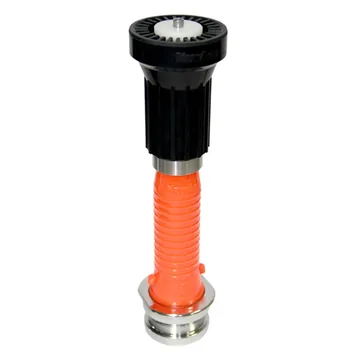

New Age 3-Position Nozzle, Jet, Spray and Shut Off
Sizes: 12 mm, 16 mm, 20 mm
Three position nozzle for jet, spray and shut off, in chrome plated gunmetal or PVC, with 12 mm, 16 mm or 20 mm bores.

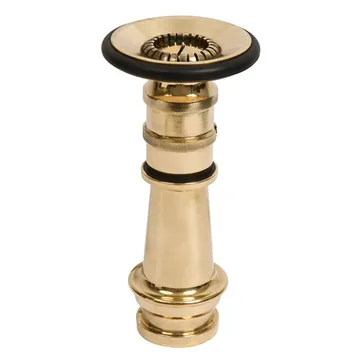

New Age Triple Purpose Nozzle
Triple purpose jet, spray and shut off nozzle in gunmetal, aluminium alloy or stainless steel, in natural polish or chrome plated finish.

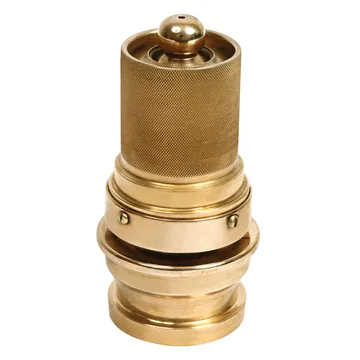

New Age Navy Diffuser Nozzle
Jet, spray and shut off nozzle of the navy diffuser type, in gunmetal, aluminium alloy or stainless steel, with a wide choice of inlets.

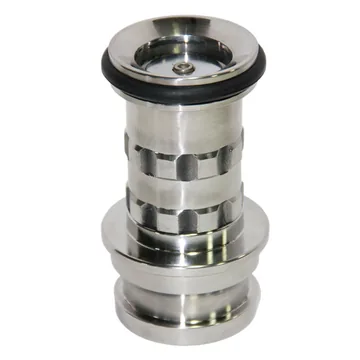

New Age Navy Diffuser Mini Nozzle
Smaller navy diffuser jet, spray and shut off nozzle in aluminium alloy or stainless steel, in natural polish or hard anodised finish.

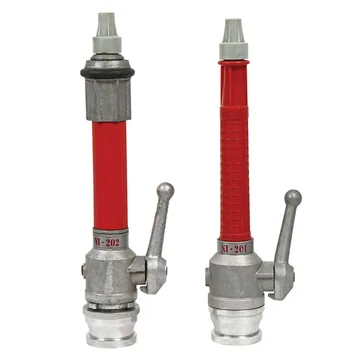

New Age Hand Controlled Jet and Spray Nozzle
Hand controlled jet, spray and shut off nozzle in aluminium alloy with a PVC tip and body, natural finish.

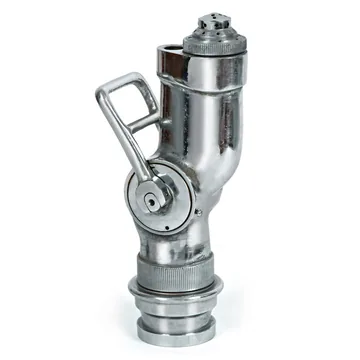

New Age Fog Nozzle, Gunmetal, IS 952
Gunmetal jet and fog nozzle made to IS 952, in natural polish, with a 10 bar operating pressure.

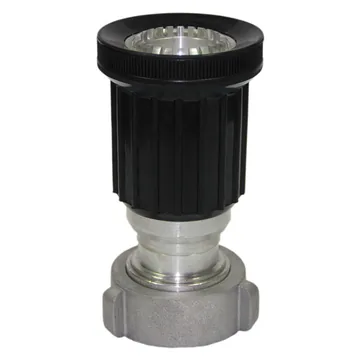

New Age Combat Nozzle
Lightweight aluminium alloy nozzle for hollow jet, spray and shut off, with a spinning teeth ring for a wide fog curtain and a moulded rubber grip.

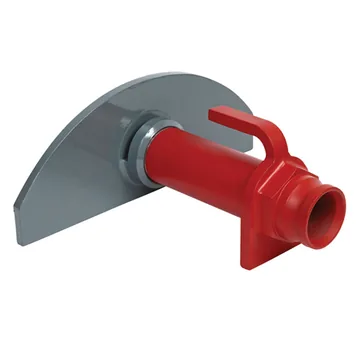

New Age Jumbo Curtain Nozzle, 180 Degree
Curtain nozzle with a handle that throws a 180 degree water curtain, in gunmetal or stainless steel.

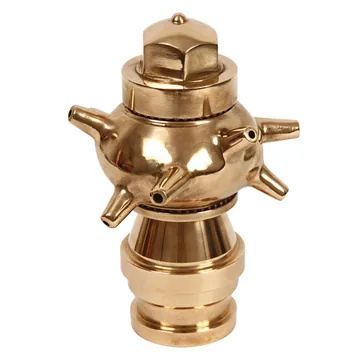

New Age Revolving Branch Pipe, Gunmetal, IS 906
Gunmetal revolving nozzle made to IS 906, with threaded, instantaneous or ANSI flanged inlets.

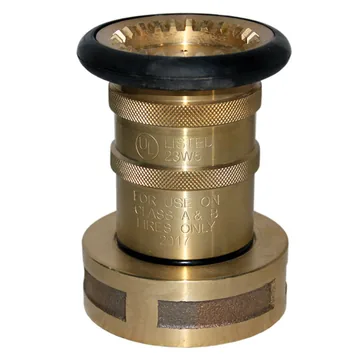

New Age Portable Spray Nozzle, UL Listed
Sizes: 1 1/2“, 2 1/2“
UL Listed portable spray nozzle, made and tested to UL-40, for Class A and B fires, in 1½ inch and 2½ inch sizes with a 100 psi inlet pressure.

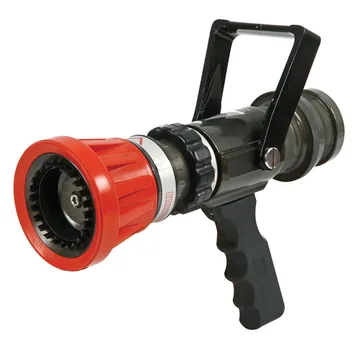

New Age SUPERfire Selectable Gallonage Pistol Grip Nozzle
Hard anodised aluminium pistol grip nozzle with selectable flows of 13, 25, 40 or 60 GPM at 75 psi (5 bar), from straight stream to wide fog.

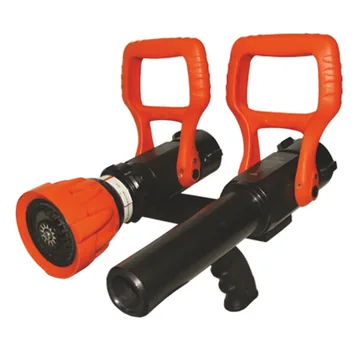

New Age BOWfire Twin Agent Pistol Grip Nozzle
Twin agent pistol grip nozzle in hard anodised aluminium, with automatic pressure control and flows of 13, 25, 40 or 60 GPM at 75 psi (5 bar).

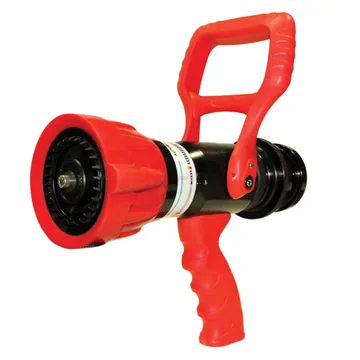

New Age RAPIDfire Constant Pressure Pistol Grip Nozzle
NFPA 1964 compliant constant pressure pistol grip nozzle for 60 to 180 GPM at 55 psi (3.8 bar), able to give a solid jet and fog together or separately.

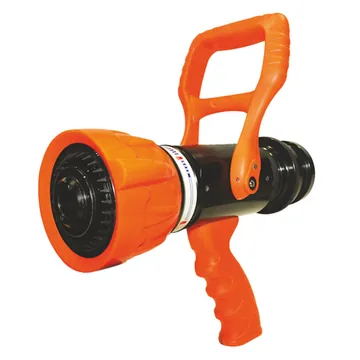

New Age CONfire Dual Pressure Combination Nozzle
Dual pressure combination pistol grip nozzle that keeps the same performance in its low pressure emergency mode, rated at a 4 bar nozzle pressure.

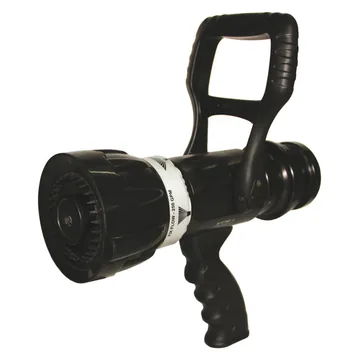

New Age JETfire Constant Flow Pistol Grip Nozzle
NFPA 1964 compliant constant flow nozzle with selectable flow settings, where the flow stays the same in every spray pattern.

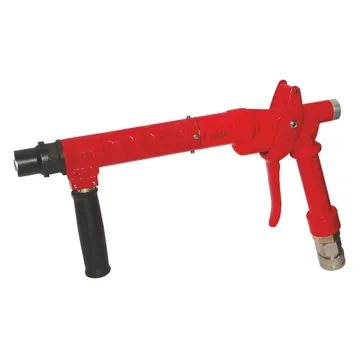

New Age HAWKfire High Pressure Pistol Grip Nozzle
High pressure pistol grip nozzle for use up to 40 bar, with selectable flow settings, for example 40 GPM (150 LPM) at 580 psi (40 bar).

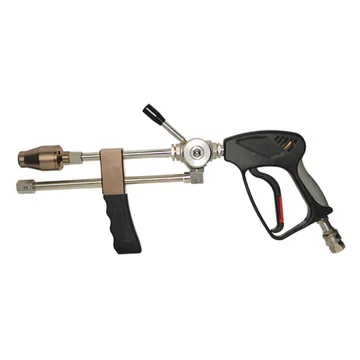

New Age PINfire Ultra High Pressure Pistol Grip Nozzle
Ultra high pressure pistol grip nozzle for use up to 100 bar, for example 3 GPM (12 LPM) at 1450 psi (100 bar), made for low water use.
How to choose
A branch pipe is the nozzle at the end of a fire hose. The simplest are New Age's short and long branch pipes, which give a solid jet through a 15 mm, 20 mm or 25 mm tip. Where the crew needs to change the pattern, choose a jet, spray and shut off nozzle such as the 3-position nozzle, triple purpose nozzle, navy diffuser or hand controlled jet and spray; a fog nozzle to IS 952; or the combat nozzle, whose spinning teeth ring gives a wide fog curtain. The jumbo curtain nozzle throws a 180 degree water curtain, and the revolving branch pipe to IS 906 spins to spread the water.
Match the inlet to your hose coupling. Most New Age branch pipes are offered with a 2.5 inch male instantaneous inlet or 2.5 inch BSP, NPT or NH threads, and some with Storz, swivel or flanged inlets. They are rated for an operating pressure of 10 bar and come in gunmetal, aluminium alloy, stainless steel or PVC, depending on the model.
The pistol grip range covers different jobs. SUPERfire and BOWfire give 13, 25, 40 or 60 GPM at 75 psi (5 bar); RAPIDfire is a constant pressure nozzle for 60 to 180 GPM at 55 psi (3.8 bar); CONfire is a dual pressure combination nozzle; JETfire is a constant flow nozzle; and HAWKfire and PINfire are for high pressure use up to 40 bar and 100 bar. RAPIDfire and JETfire are stated as NFPA 1964 compliant, and the portable spray nozzle is UL Listed and tested to UL-40. FPS supplies these nozzles across Madhya Pradesh.
Frequently asked questions
What is a branch pipe?
It is the nozzle fitted to the end of a fire hose that forms the water stream. New Age's short and long branch pipes give a solid jet through 15 mm, 20 mm or 25 mm tips, and its other nozzles add spray, fog or curtain patterns.
Which New Age nozzles are UL Listed or NFPA compliant?
The portable spray nozzle is UL Listed and tested to UL-40, for Class A and B fires. The RAPIDfire and JETfire pistol grip nozzles are stated as NFPA 1964 compliant.
What is a jet, spray and shut off nozzle?
It is a nozzle that can switch between a straight jet, a spray and fully off at the nozzle itself, so the operator controls the water without going back to the valve. New Age's 3-position nozzle, triple purpose nozzle, navy diffusers and hand controlled jet and spray work this way.
What does selectable gallonage mean?
It means the operator can choose the flow on the nozzle. New Age's SUPERfire, for example, can be set to 13, 25, 40 or 60 GPM at 75 psi (5 bar).
Which New Age nozzle suits a high pressure pump?
HAWKfire is designed for up to 40 bar and PINfire for up to 100 bar, both with a ball valve for flow control and stainless steel spinning teeth. New Age states they suit forestry and municipal work where water conservation matters.
How do I get a price for New Age branch pipes and nozzles?
Prices depend on model, material, inlet and quantity and are given on request. Call or WhatsApp +91 92440 89060 and FPS will quote for supply across MP.
