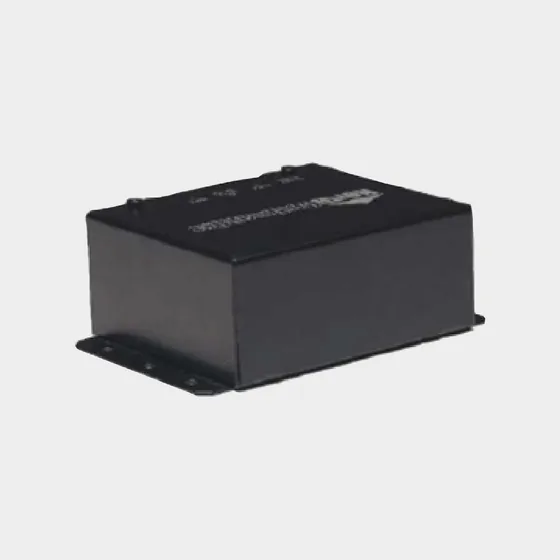

Authorised distributor for CeasefireInterface that links a single Intelli-Sense network to a building management system over BACnet or Modbus, with 640 configurable objects. It is supplied as TI-002334 or as a configured version, TI-002335.
| Specification | TI-002334 | TI-002335 |
|---|---|---|
| Type | Intelli-Sense Panel Peripheral | Intelli-Sense Panel Peripheral |
| Model | TI-002334 | TI-002335 |
| Processor | Embedded AMD Low Power CPU | Embedded AMD Low Power CPU |
| Memory | 512MB RAM | 512MB RAM |
| Disk Space | 4GB Industrial Solid State Hard Drive | 4GB Industrial Solid State Hard Drive |
| Graphics | Not Applicable | Not Applicable |
| Sound Card | Not Applicable | Not Applicable |
| USB Port | Not Applicable | Not Applicable |
| Ethernet | 1 x Ethernet Port | 1 x Ethernet Port |
| Serial Port | 2 x Serial port for communication with Intelli-Sense-Net Networks We recommend ordering the RS232 Cable for interconnection to TI-002330-BX or TI-002331-BX. | 2 x Serial port for communication with Intelli-Sense-Net Networks We recommend ordering the RS232 Cable for interconnection to TI-002330-BX or TI-002331-BX. |
| PS/2 Socket | Not Applicable | Not Applicable |
| Dimensions | 45.0mm(H) x 126mm(W) x82mm(D) | 45.0mm(H) x 126mm(W) x82mm(D) |
| Power Requirements | 1 x Terminal Socket for DC Power Input 12vDC - 24vDC +/- 10% (Notsupplied) | 1 x Terminal Socket for DC Power Input 12vDC - 24vDC +/- 10% (Notsupplied) |
| Internal Battery | 1 x Internal Lithium Battery (Size 1/2AA -3.6v) | 1 x Internal Lithium Battery (Size 1/2AA -3.6v) |
| Operating Temperature | 0 - 50 Deg C | 0 - 50 Deg C |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
An intelligent addressable control module that supervises wiring to devices powered from an external supply, such as horns, strobes or bells, with Class A or Class B supervision.
An addressable relay module giving a dry-contact output to switch auxiliary devices such as fans, dampers and control equipment, using one of 159 module addresses on the SLC loop.
A single channel addressable input module for Morley-IAS intelligent panels. It watches an external device and reports normal, open circuit and alarm states to the panel.
A small monitor module that fits in a single gang junction box directly behind the device it monitors, giving a two-wire initiating circuit for normally open fire alarm and security contacts.
A loop-powered output module from the Series 200 plus range that controls an unsupervised double pole output for 240VAC loads, latching on or off on command from the panel.
Single and multi-way addressable modules on one mechanical platform that can be box, panel or DIN rail mounted, with the address switch and LEDs visible whichever mounting is used.
