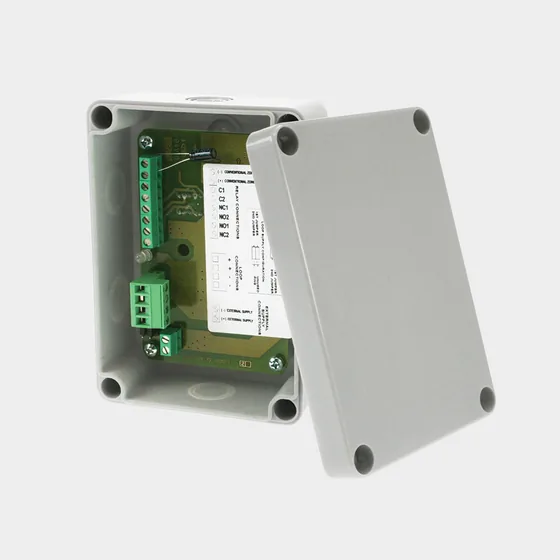

Authorised distributor for CeasefireAddressable module that monitors one conventional zone circuit with up to 20 conventional devices, so a conventional zone can join an addressable loop. It has one relay output rated 2 A at 30 V DC and is approved to EN 54-17 and EN 54-18 with IMQ certification.
Standards and approvals: EN 54-17, EN 54-18, IMQ
| Specification | TI-002224 |
|---|---|
| Type | Addressable |
| Model | TI-002224 |
| Number of Monitored Zone Circuit | 1 |
| Maximum Number of Conventional Devices Connected to Zone Circuit | 20 |
| Number of Relay Output | 1 |
| Operating Voltage | 15-40V DC |
| Standby Current Consumption | 500µA @ 24V DC |
| Alarm Current Consumption | 10mA |
| Maximum Output Rating | 2A @ 30V DC |
| Ambient Temperature | -30°C to +70°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Width x Height x Depth) | 86.5mm x 86.5mm x 24mm |
| Standard | EN 54-17; EN 54-18 |
| Certification/Approval Authority | IMQ |
| Short Circuit/Fault Isolator | Built-in short-circuit isolator |
| Protection Class | IP 54 |
| Mode of Addressing | Electronically Addressed |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
