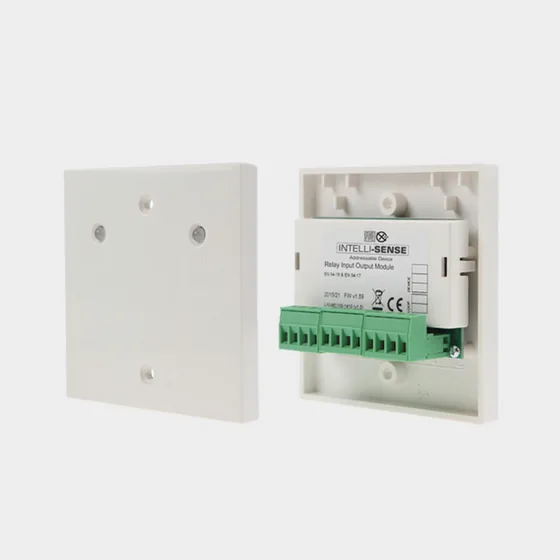

Authorised distributor for CeasefireAddressable module with one monitored input and one supervised output, the output rated 2 A at 30 V DC. BSI approved to EN 54-17 and EN 54-18, in standard (TI-002222) and mini mount (TI-002298) versions.
Standards and approvals: EN 54-17, EN 54-18, BSI
| Specification | TI-002222 | TI-002298 |
|---|---|---|
| Type | Addressable | Addressable |
| Model | TI-002222 | TI-002298 |
| Number of Monitored Input Circuit | 1 | 1 |
| Number of Supervised Output | 1 | 1 |
| Operating Voltage | 15-40V DC | 15-40V DC |
| Standby Current Consumption | 250µA @ 24V DC | 250µA @ 24V DC |
| Alarm Current Consumption | 6-12mA @ 24V DC | 6-12mA @ 24V DC |
| Maximum Output Rating | 2A @ 30V DC | 2A @ 30V DC |
| Ambient Temperature | -10°C to +55°C | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) | 95% (non condensing) |
| Dimensions (Width x Height x Depth) | 86.5mm x 86.5mm x 24mm | 75mm x 52mm x 18mm (ex-fixing) |
| Standard | EN 54-17; EN 54-18 | EN 54-17; EN 54-18 |
| Certification/Approval Authority | BSI | BSI |
| LED Indicator | Bi-colour LED | Bi-colour LED |
| Short Circuit/Fault Isolator | Built-in short-circuit isolator | Built-in short-circuit isolator |
| Protection Class | IP 65 | IP 65 |
| Mode of Addressing | Electronically Addressed | Electronically Addressed |
| Product Warranty | 1 Year Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
