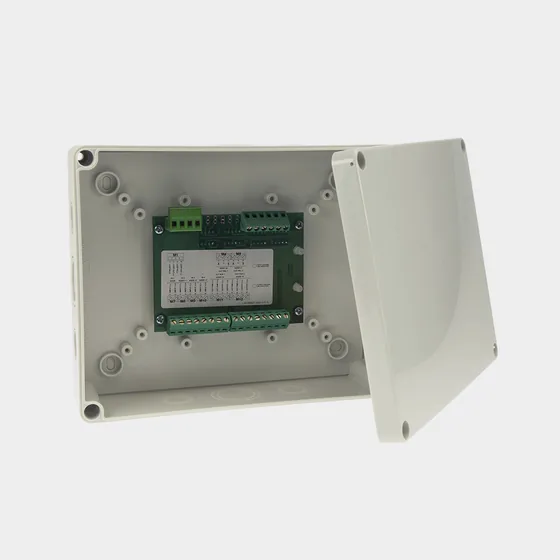

Authorised distributor for CeasefireAddressable module with 4 monitored inputs, 2 relay (form C) outputs and 2 supervised outputs in one box. Approved to EN 54-17 and EN 54-18 and certified by IMQ.
Standards and approvals: EN 54-17, EN 54-18, IMQ
| Specification | TI-002218 |
|---|---|
| Type | Addressable |
| Model | TI-002218 |
| Number of Monitored Input Circuit | 4 |
| Number of Supervised Output | 2 |
| Number of Relay Output | 2 |
| Operating Voltage | 18-40V DC |
| Standby Current Consumption at 24V | 500µA @ 24V DC |
| Ambient Temperature | -10°C to +55°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Width x Height x Depth) | 210mm x 170mm x 65mm |
| Standard | EN 54-17; EN 54-18 |
| Certification/Approval Authority | IMQ |
| LED Indicator | Bi-colour LED |
| Short Circuit/Fault Isolator | Built-in short-circuit isolator |
| Protection Class | IP 65 |
| Mode of Addressing | Electronically Addressed |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
An intelligent addressable control module that supervises wiring to devices powered from an external supply, such as horns, strobes or bells, with Class A or Class B supervision.
An addressable relay module giving a dry-contact output to switch auxiliary devices such as fans, dampers and control equipment, using one of 159 module addresses on the SLC loop.
A single channel addressable input module for Morley-IAS intelligent panels. It watches an external device and reports normal, open circuit and alarm states to the panel.
A small monitor module that fits in a single gang junction box directly behind the device it monitors, giving a two-wire initiating circuit for normally open fire alarm and security contacts.
A loop-powered output module from the Series 200 plus range that controls an unsupervised double pole output for 240VAC loads, latching on or off on command from the panel.
Single and multi-way addressable modules on one mechanical platform that can be box, panel or DIN rail mounted, with the address switch and LEDs visible whichever mounting is used.
