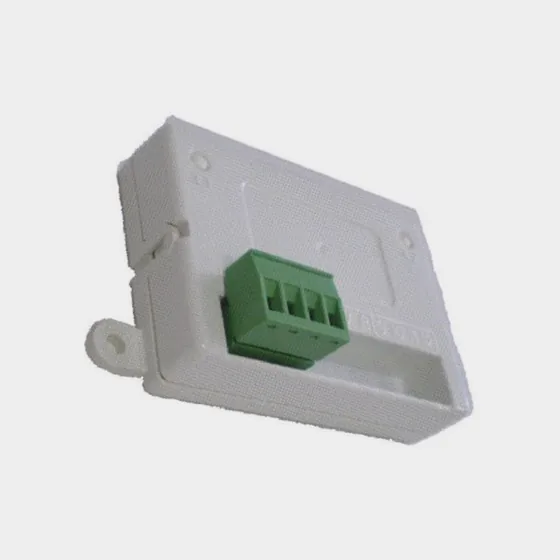

Authorised distributor for CeasefireLoop powered module that opens the loop automatically when it detects a short circuit, so the fault does not take down the whole loop, and resets itself once the short is cleared. It can cut off up to 32 Intelli-Sense Lite devices and is designed to EN 54-17.
Standards and approvals: EN 54-17, EN 54-18
| Specification | TI-002225 |
|---|---|
| Type | Addressable |
| Model | TI-002225 |
| Operating Voltage | 15-40V DC |
| Standby Current Consumption | 90µA @ 24V DC |
| Maximum number of Intelli-Sense Lite devices that can be “cut off” by the isolator module | up to 32 |
| Ambient Temperature | -30°C to +70°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Width x Height x Depth) | 75mm x 52mm x 28mm |
| Standard | EN 54-17; EN 54-18 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
