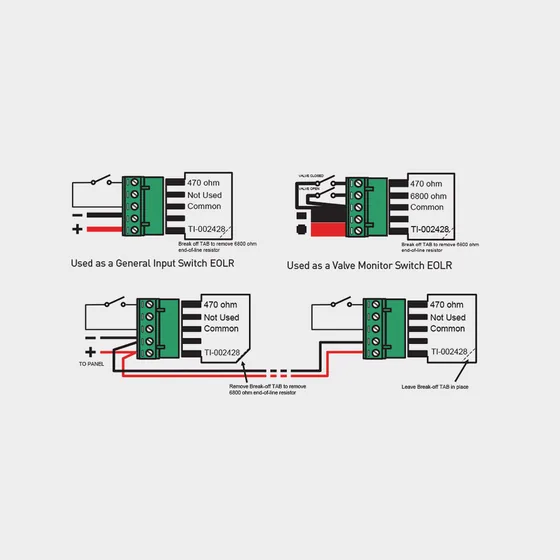

Authorised distributor for CeasefireSmall end of line module for the Rapid-Sense manual release switch circuit, measuring 38 x 27 x 15 mm.
| Specification | TI-002428 |
|---|---|
| Type | Conventional |
| Model | TI-002428 |
| Dimensions | 38mm x 27mm x 15mm |
| End-of-Line Resistance | 6800 Ohms |
| SW #1 Active Resistance | 470 Ohms |
| Maximum Operating Voltage | 30V DC |
| Environmental Class | Indoor 0ºC to 40ºC |
| Humidity | 95% max |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
