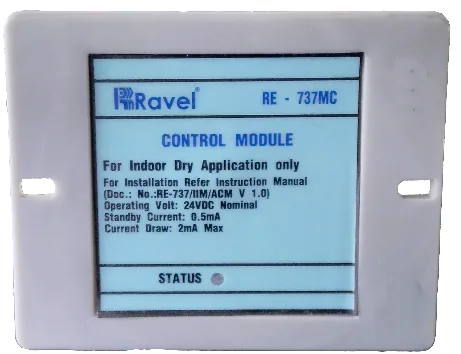

Dealer for RavelRavel Addressable Control Module with Isolator (MonitI Single Loop)
An analogue addressable control module for the MonitI single loop panel, with a supervised output circuit and a built in isolator.
- Supervised Class B, Style Y output circuit
- Built in isolator
- External regulated 24 V supply
- Addressed by software or 8 way DIP switch, red status LED
Specifications
Specifications
| Specification | RE: 737MC |
|---|---|
| Operating Voltage | 24 VDC Nominal. |
| Current Draw | 2 mA Max. |
| Standby Current | 0.5 mA |
| End of Line Resistor | 47K Ohms |
| Communication Line Loop Impedance | 40 Ohms |
| Line Loss | 4 VDC Max |
| External Supply Voltage | Regulated 24V |
| Max. Output Current Drive | 1 Amps.(Supervised) |
| Operating Temperature | 0 °C to 49 °C / 32°: 120 °F |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
