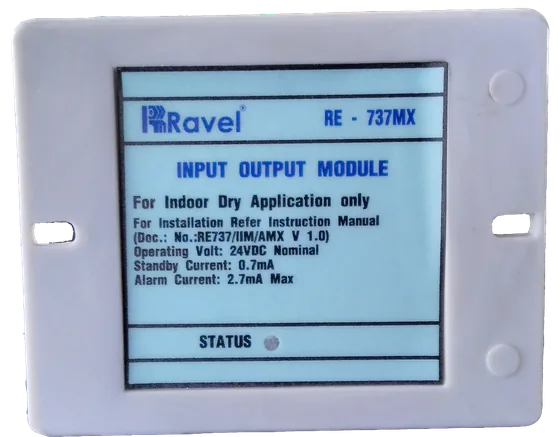

Dealer for RavelRavel Addressable Input Output Module with Isolator (MonitI Single Loop)
An analogue addressable input output module for the MonitI single loop panel, with a built in isolator.
- Input and output in one module
- Relay contact rated 2 A at 30 V DC (resistive)
- Built in isolator
- Addressed by software or 8 way DIP switch, red status LED
Specifications
Specifications
| Specification | RE: 737MX |
|---|---|
| Operating Voltage | 24 VDC Nominal. |
| Alarm Current | 2.7 mA Max. |
| Standby Current | 0.7 mA |
| Contact Rating | 2A @ 30VDC(Resistive) |
| End of Line Resistor | 47K Ohms |
| Communication Line Loop Impedance | 40 Ohms |
| IDC wiring Resistance | 1000 Ohms Max. |
| IDC Voltage | 8 V Max |
| Temperature Range | 0° C to 49° C / 32°: 120° F |
| Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
