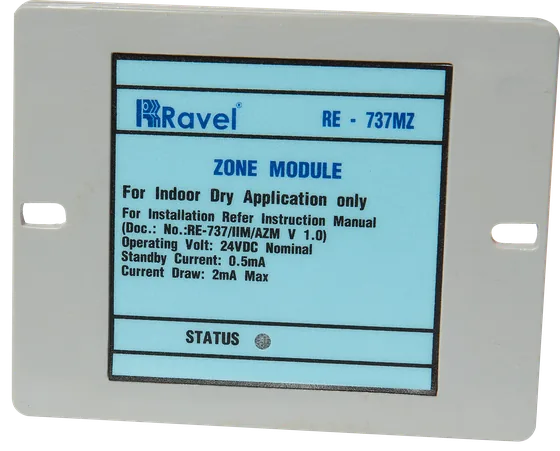

Dealer for RavelRavel Addressable Zone Module with Isolator (MonitI Single Loop)
An analogue addressable zone module for the MonitI single loop panel, with a built in isolator and an external 24 V DC supply.
- Zone module for the single loop system
- Built in isolator
- External regulated 24 V DC supply
- Addressed by software or 8 way DIP switch, red status LED
Specifications
Specifications
| Specification | RE: 737MZ |
|---|---|
| Operating Voltage | 24 VDC Nominal. |
| Quiescent Current (SLC) | 0.5mA |
| Alarm Current (SLC) | 2 mA Max |
| External Supply Voltage | Regulated 24VDC |
| External Supply Standby Current | 5mA |
| External Supply Alarm Current | 60mA Max |
| Communication Line Loop Impedance | 40 Ohms |
| End Of Line Resistor | 4.7K Ohms. |
| Temperature Range | 0° C to 49° C / 32°: 120° F |
| Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.5 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
