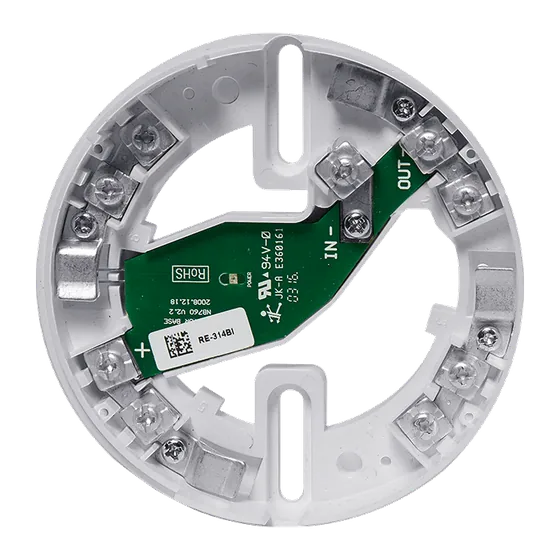

Dealer for RavelRavel Isolator Base
A bidirectional isolator built into a detector base, so a single short circuit on the loop only affects the section where it occurs. Ravel advises one for every 16 devices.
- Bidirectional short circuit isolation
- Non addressable, yellow LED on the base
- Plug type connector for easy wiring
- 17 to 28 V DC loop supply, low standby current
Specifications
Specifications
| Specification | RE-314BI |
|---|---|
| Supply voltage (min) | 17V |
| Max Supply Voltage(Vmax) | 28VDC, 37VPeak |
| Nominal Supply Voltage(Vno) | 24VDC |
| Quiescent Current at 24V(Ic) | 30µA |
| Leakage Current at 24V(IL) | 2 mA when isolating |
| Max Curent (through loop)(IS) | 1A continuous, 3A Peak |
| Isolating Voltage (Vco) | <14V |
| Maximum on resistance(Zc) | 0.02Ω |
| Re-connect Voltage(Voc) | 14 ~ 16V |
| Dimensions | (96 Lx76 Bx22 H)mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
