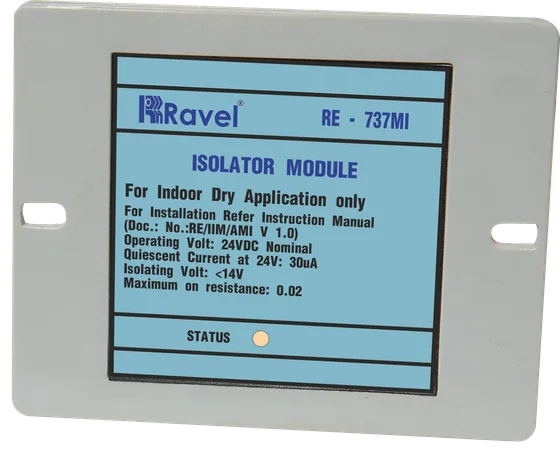

Dealer for RavelRavel Loop Isolator Module (MonitI Single Loop)
A loop isolator module for the MonitI single loop panel that limits a short circuit to one section of the loop.
- Isolates a short circuited section of the loop
- Yellow status LED
- 17 to 28 V DC loop supply
- Available with suitable back boxes
Specifications
Specifications
| Specification | RE: 737MI |
|---|---|
| Min Supply Voltage (Vmin) | 17V |
| Max Supply Voltage(Vmax) | 28VDC |
| Nominal Supply Voltage(V∞) | 24VDC |
| Quiescent Current at 24V(Ic) | 30µA |
| Leakage Current at 24V(IL) | 2 mA when isolating |
| Max Curent (through loop)(Is) | 1A continuous, 3A Peak |
| Isolating Voltage (Vco) | <14V |
| Maximum on resistance(Zc) | 0.02Ω |
| Re-connect Voltage(Voc) | 14 ~ 16V |
| Dimensions | (95 W X 75 H X 24D) mm |
| Color | Black |
| Weight | 0.35Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
