Fire Protection System is an authorised Kartar Valves distributor in Bhopal, supplying Kartar forged brass sprinklers (15 mm screwed, 68°C, 175 psi) in pendent, upright and sidewall types, along with rosette plates, water spray and water curtain nozzles and the Kartar test and drain valve. We supply, install and maintain them across Madhya Pradesh.

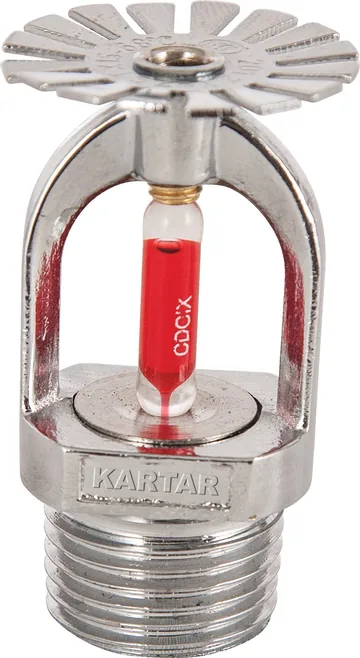

Kartar's forged brass sprinkler head with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, in pendent, upright and sidewall types. The K908.I series is ISI marked; the K908 series is listed without the mark.

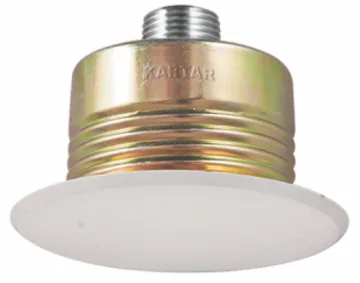

A concealed sprinkler with a forged brass body, fitted recessed in the ceiling for a clean finish. Kartar publishes the name and a photo only, so ratings and cover plate details are confirmed on enquiry.

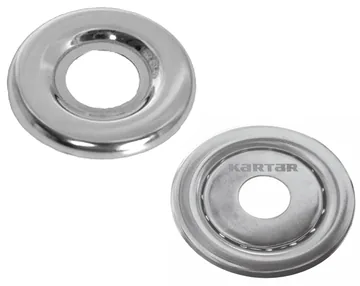

A rosette plate that covers the ceiling opening around a sprinkler head. Kartar lists a fixed plate (K908 FR) and an adjustable plate (K908 AR).
A test and drain valve for sprinkler installations, made in stainless steel 304 and rated PN-20. Sizes 25, 32, 40 and 50 mm.
Brass water curtain nozzles with a 1/2 inch BSP thread, listed in a heavy version (K920.WCH) and a medium version (K920.WCM). A water curtain nozzle spreads water in a flat sheet across an opening.
A brass medium velocity water spray nozzle with a 1/2 inch BSP thread, used on open water spray systems.
A brass high velocity water spray nozzle with a 3/4 inch BSP thread, listed plain (K920.HV) and with a built-in strainer (K920.HVS).
Start with the mounting position. A pendent sprinkler hangs down from the pipe and suits pipework hidden above a false ceiling. An upright sprinkler points up from the top of an exposed pipe, as in warehouses, plant rooms and car parks. A sidewall sprinkler is fixed on a wall and throws water out across the room. Kartar's forged brass sprinkler comes in all three types, each with a 15 mm screwed connection, a 175 psi rating and a 68°C temperature rating, which is the temperature at which the head opens.
If your project needs ISI marked heads, choose the K908.I series (K908.I BP pendent, K908.I BU upright, K908.I BS sidewall). The K908 BP, K908 BU and K908 BS heads share the same 15 mm size and 68°C rating but are listed without the ISI mark. Kartar does not state a K factor for these heads, so we confirm it with the maker against your hydraulic design before quoting.
Finish the ceiling with a rosette plate: the fixed version (K908 FR) for a set pipe drop and the adjustable version (K908 AR) to take up small differences between the drop and the finished ceiling. Where appearance matters, Kartar also lists a concealed sprinkler with a forged brass body.
For open spray systems Kartar makes brass nozzles: water curtain nozzles in 1/2 inch BSP (heavy and medium), medium velocity spray nozzles in 1/2 inch BSP and high velocity spray nozzles in 3/4 inch BSP, with or without a built-in strainer. For testing and draining the installation, Kartar's K922 test and drain valve is made in stainless steel 304, rated PN-20, in 25 mm to 50 mm.
