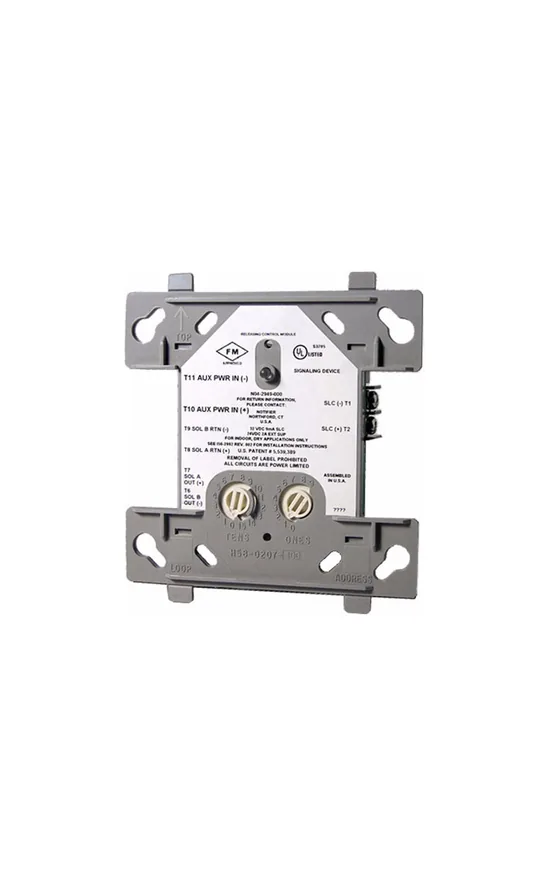

Dealer for NotifierNotifier FCM-1-REL Releasing Control Module
A releasing control module with a redundant protocol: it must be armed and then confirmed within a 3 second window before it activates, and it supervises the solenoid wiring.
- Redundant arm and confirm protocol, resets itself if no confirmation arrives
- Drives one 24 V solenoid or two 12 V solenoids in series
- Reports wiring status as normal, open or short circuit
- Class A or Class B operation, external supply voltage monitoring
- 15 to 32 VDC, -10°C to 60°C
- UL listed and FM approved, CSFM listed
Standards and approvals: UL Listed: S635, ULC Listed: (FCM-1-RELA), FM Approved, CSFM: 7300-0028:249
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| Operating Voltage | 15 to 32 VDC | ||
| Communication Line Loop Impedance | 40 Ohm max. | ||
| Temperature Range | 14°F to 140°F (-10° to 60°C) | ||
| Relative Humidity | 10% to 95% noncondensing | ||
| Shipping Weight | 5.5 oz (156 g) | ||
| Dimensions | 4.275" W × 4.675" H × 1.400" D (10.86 cm W × 11.87 cm H × 3.56 cm D) | ||
| Average Operating Current | 700 µA max @ 24 VDC (one communication every 5 sec. with LED enabled) | ||
| Maximum Activation Current | 9.0 mA (LED on) | 2 A | |
| Normal Operating Voltage | 24 VDC Nominal | ||
| Maximum Line Loss | 2.3 VDC (total allowable loss from power supply to module and from module to solenoid) | ||
| Minimum Operating Voltage to Activate Solenoid | 18 VDC (at solenoid) • Standby Current: 6.4 mA • Activation Current: 10 mA | ||
| Supervisory Loop Voltage | 3.3 V | ||
| Supervisory Loop Current (Normal) | 30 mA |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
