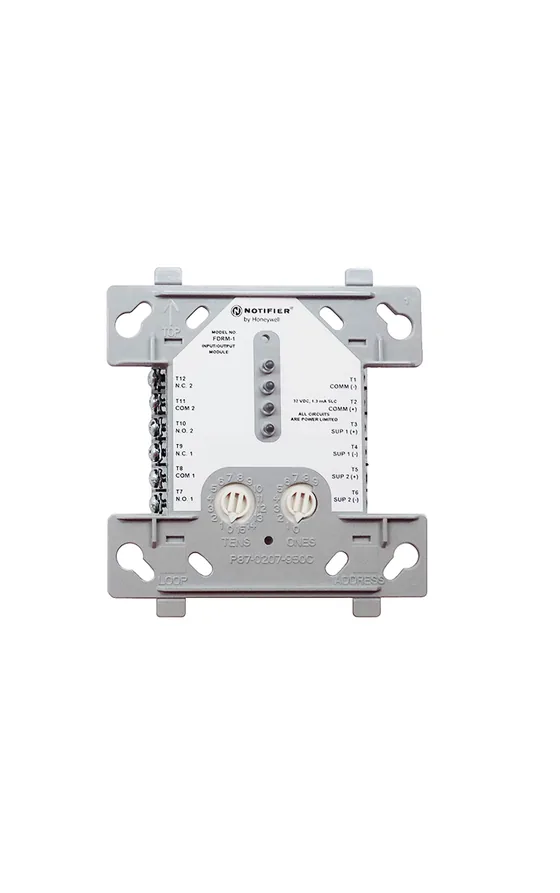

Dealer for NotifierNotifier FDRM-1 Dual Relay and Monitor Module
An addressable module for two-wire loops that combines two relay outputs for Form C switching with two Class B monitor inputs for normally open contacts.
- Two relay outputs for Form C switching of unsupervised loads
- Two Class B monitor inputs
- Rotary addressing: 1 to 99 on CLIP, 1 to 159 on FlashScan
- Low-profile design, mounts to a 4 inch square box
- Operating range 0°C to 49°C
- UL/ULC listed and CSFM listed
Standards and approvals: UL/ULC Listed: S635, CSFM: 7300-0028:0219
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Operating Temperature | 32°F to 120°F (0°C to 49°C). | |
| Relative Humidity | 10% to 93% non-condensing. | |
| Size | 4.675" H x 4.275" W x 1.4" D. (Mounts to a 4" square by 2-1/8" deep box.) | |
| Shipping Weight | 6.3 oz. (178.6 grams). | |
| Normal Operating Voltage | 15 to 32 VDC. | |
| Maximum Current Draw | 24 mA (4 LEDs on). | |
| Average Operating Current | 1300 μA. |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
