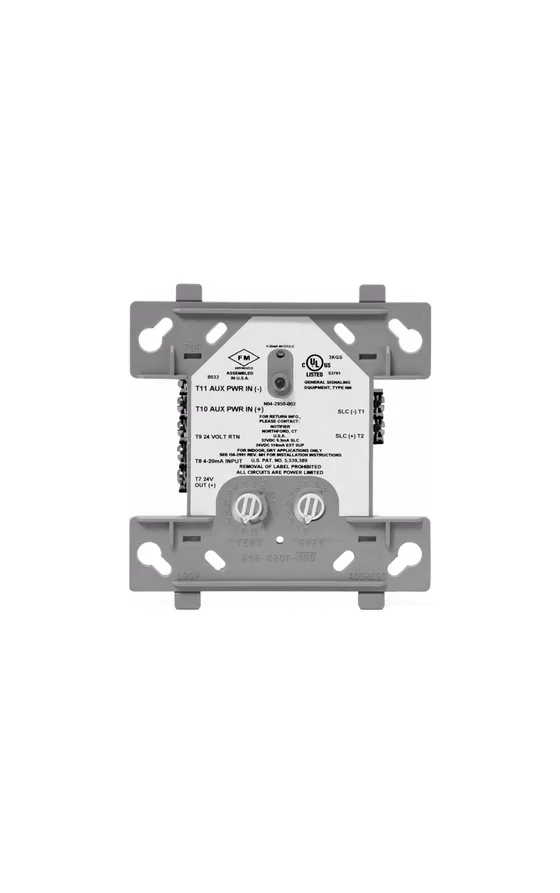

Dealer for NotifierNotifier FMM-4-20 Analogue Input Module (4 to 20 mA)
An addressable analogue input module that lets the NFS2-3030 panel monitor and display readings from linear-scale 4 to 20 mA sensors, such as gas, temperature and air speed sensors.
- Reads industry-standard 4 to 20 mA sensors
- For the NFS2-3030 fire alarm control panel, FlashScan operation
- Bi-colour panel-controlled status LED, rotary address switches
- 15 to 32 VDC, -10°C to 60°C
- UL listed (cUL as FMM-4-20A), FM approved and FM 6320 approved for gas detection
Standards and approvals: UL Listed: S6646, cUL Listed: S6646 (FMM-4-20A), FM approved, FM6320 approved: Class 6320 for Gas Detection, CSFM: 7300-0028:254
Specifications
Specifications
| Specification | Details |
|---|---|
| Operating Voltage | 15 to 32 VDC |
| Communication Line Loop Impedance | 40 Ohm max. |
| Temperature Range | 14°F to 140°F (-10° to 60°C) |
| Relative Humidity | 10% to 93% noncondensing |
| Shipping Weight | 5.5 oz (156 g) |
| Dimensions | 4.275" W × 4.675" H × 1.400" D (10.86 cm W × 11.87 cm H × 3.56 cm D) |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
