Fire Protection System (FPS), an HD Fire dealer in Bhopal, supplies HD fire fighting monitors in galvanized carbon steel, stainless steel and cast bronze, from 2.5 inch manual units to 6 inch high flow monitors, plus water powered oscillating and electric remote controlled versions. Many carry FM approval or UL listing when paired with the nozzles HD names.
Sizes: 100mm (4”)

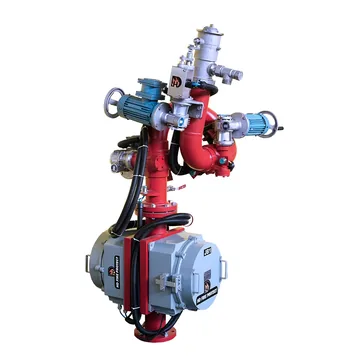

The stainless steel VARUN-443 monitor fitted with an electric motor, so it is aimed from a control panel instead of by hand. The basic monitor and nozzle are UL Listed, and HD names storage tanks, loading racks, jetties and terminals as typical uses.

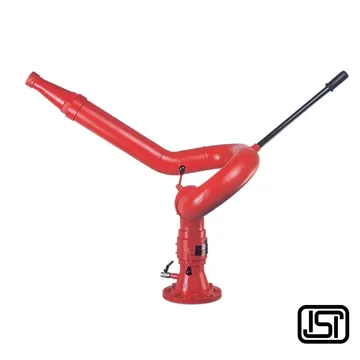

A hand operated monitor with a hot dip galvanized carbon steel waterway and a fixed flow solid bore nozzle, carrying ISI certification. It is offered in 2.5, 3 and 4 inch sizes.
Sizes: 63 mm (2.5″)

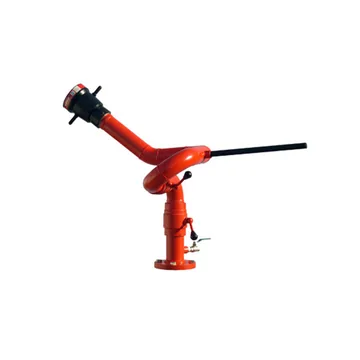

A 2.5 inch manual monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. A worm gear moves it vertically and a handle with twist lock turns it horizontally.

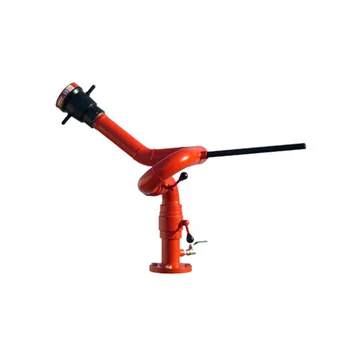

A corrosion resistant stainless steel manual monitor with a 2.5 inch waterway, built for fixed installation or for mounting on a trailer.

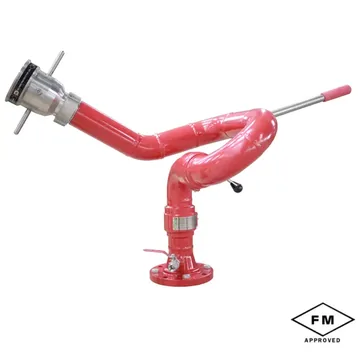

A 3 inch hot dip galvanized carbon steel monitor that one person can deploy, for fixed installation or trailer mounting. It is FM Approved with the VARSHA 40 master stream nozzle.

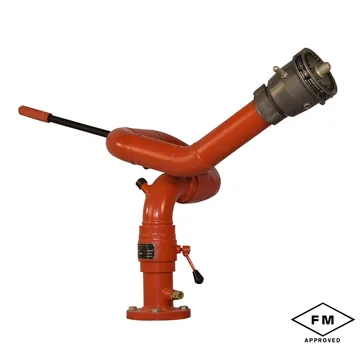

A corrosion resistant stainless steel version of the 3 inch manual monitor, epoxy painted red and FM Approved with the VARSHA 40 master stream nozzle. HD states that its single waterway and precision machined swivel joints reduce friction loss and improve jet reach.
Sizes: 100 mm (4″)

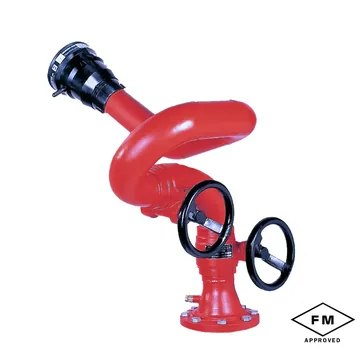

A 4 inch gear operated monitor with a hot dip galvanized carbon steel waterway and bronze swivel joint. It is FM Approved with the VARSHA 50 master stream nozzle and the NW 1000 solid bore nozzle.

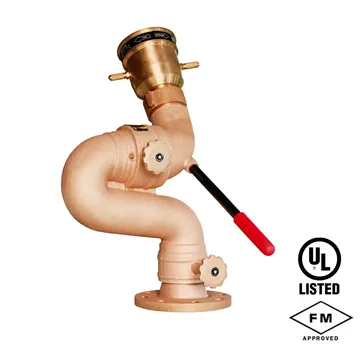

Cast bronze manual monitors with a 3 inch (80 mm) waterway for fixed installation or trailer units. VAJRA 331 is UL Listed as a foam monitor with Varsha40U and VarshaHF40U nozzles and FM Approved as a water monitor with the Varsha40 nozzle, while VAJRA 331-B is FM Approved.

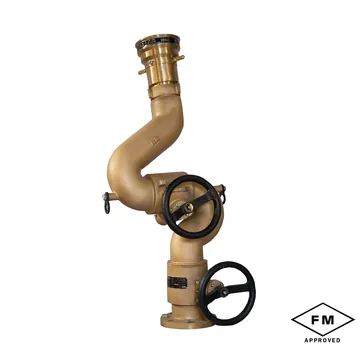

A cast bronze manual monitor with a 4 inch (100 mm) waterway and fully enclosed gear. It is FM Approved with the VARSHA 50 nozzle for flows up to 7575 lpm (2000 gpm).

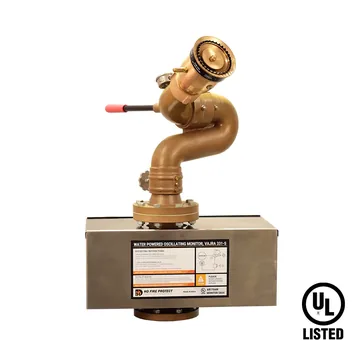

A VAJRA-331 monitor mounted on a water powered oscillating unit, so it sweeps its stream back and forth without wiring or hydraulic control. HD names tank farms, aircraft hangars, offshore sites, refineries, chemical plants and heliports as uses.

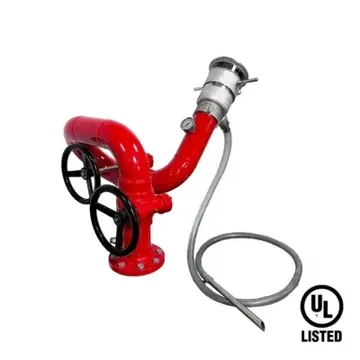

A low profile stainless steel manual foam monitor with a 4 inch (100 mm) waterway. It works with fixed flow or variable flow nozzles and is available with or without a jet ratio controller (JRC).

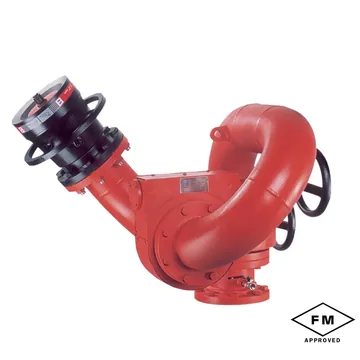

A low profile 6 inch monitor in hot dip galvanized carbon steel for installations that need high flows and long range straight streams, operated by a single fire fighter. It is FM Approved at 1500, 1750, 2000, 2100 and 2200 gpm.

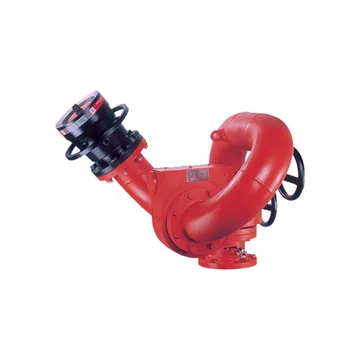

A low profile stainless steel monitor with a 6 inch waterway and bronze swivel joint, for fixed installations that need high flows and long range straight streams. One fire fighter can operate it by hand.

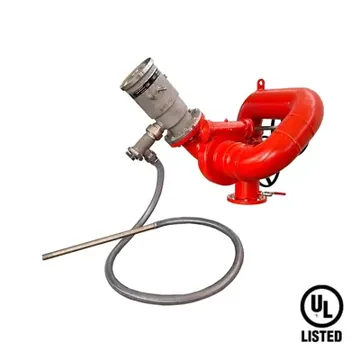

A low profile stainless steel foam monitor with a 6 inch waterway, UL Listed with AFFF 3% foam concentrate. It is used with fixed or variable flow Varsha nozzles, with or without a jet ratio controller (JRC).
A monitor is a fixed or trailer mounted device that throws a large stream of water or foam and can be aimed horizontally and vertically. Start with the size and flow you need. HD's 2.5 inch M 211 and M 241 give up to 2270 lpm (600 gpm), the 3 inch M 311 and M 341 are FM Approved with the VARSHA 40 nozzle from 1500 to 3030 lpm, the 4 inch VAJRA 433 reaches 7575 lpm (2000 gpm) with the VARSHA 50 nozzle, and the 6 inch VARUN 613 and 643 BZ go up to 12500 lpm (3300 gpm).
Then choose the material. Hot dip galvanized carbon steel monitors (M, M 211, M 311, MG 413, VARUN 613) are zinc coated against rust. Stainless steel monitors (M 241, M 341, VARUN 443, VARUN 643) and cast bronze monitors (VAJRA 331, VAJRA 433) are described by HD as corrosion resistant, which matters near the sea and in chemical areas.
Decide how the monitor will be aimed. Smaller models use a handle with a manual lock, while MG 413, VAJRA 433 and the VARUN range use a fully enclosed worm gear, which gives slow, steady movement. The VAJRA331-S oscillates by itself using a water driven wheel, with no wiring or hydraulic control, and the VARUN-443 electric remote controlled monitor is moved by motor from an explosion proof push button panel or a weatherproof joystick panel.
Finally, match approvals and nozzles. FM approval and UL listing apply to specific monitor and nozzle combinations, so tell us which approval your project needs. For foam, the VARUN 443 and 643 foam monitors can be supplied with or without a jet ratio controller (JRC). Prices on request: call or WhatsApp +91 92440 89060.
