Fire Protection System (FPS), an HD Fire dealer in Bhopal, supplies HD Varsha monitor nozzles for water and foam, NW solid stream nozzles and the CG handline hose nozzle. Several models are FM Approved or UL Listed with named HD monitors, so the nozzle can be matched to the monitor you already have.

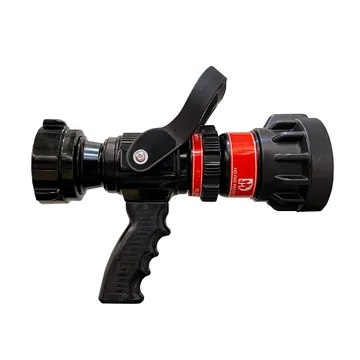

A handline nozzle for fire hoses, made of hard anodized aluminium with stainless steel spinning teeth and a black finish. It works at 3.5 to 7 bar (50 to 100 psi) and is offered with NH, BS336 or Storz inlet connections.

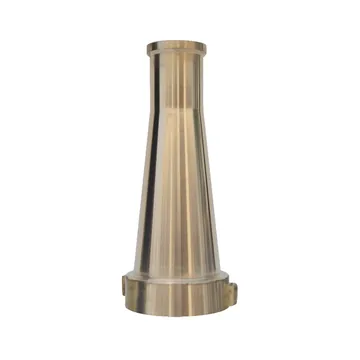

Heavy duty bronze nozzles that throw a solid water stream from a monitor, in three fixed flows of 1900, 2650 and 3785 lpm (500, 700 and 1000 gpm). They are FM Approved.

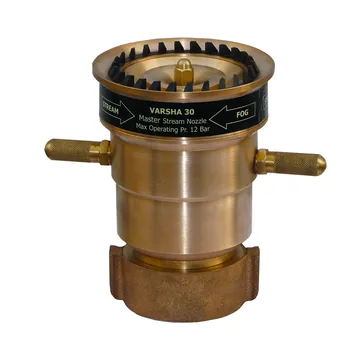

A heavy duty fixed gallonage monitor nozzle with a 2.5 inch BSP swivel female inlet, factory set for a flow between 1500 and 2850 lpm (400 to 750 gpm). It changes from straight stream to wide fog while flowing and works as a water nozzle or a non-aspirating foam nozzle.

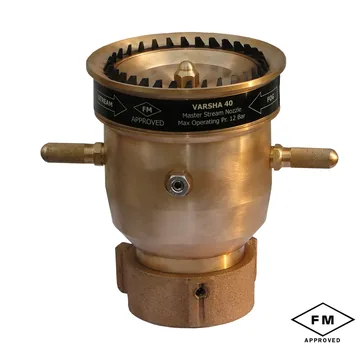

A fixed gallonage monitor nozzle with a 3 inch BSP swivel female inlet, factory set for a flow between 1500 and 3030 lpm (400 to 800 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.

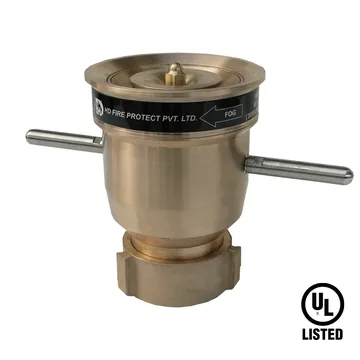

A bronze fixed gallonage monitor nozzle with stainless steel internals, factory set for 500, 750 or 1000 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.

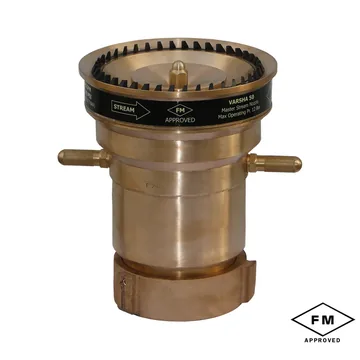

A fixed gallonage monitor nozzle with a 4 inch BSP swivel female inlet, factory set for a flow between 3030 and 7575 lpm (800 to 2000 gpm). It is FM Approved for water application and made in bronze, stainless steel or hard anodized aluminium with stainless steel internals.

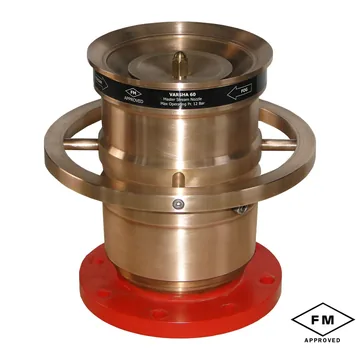

A high flow fixed gallonage monitor nozzle with a 150 mm (6 inch) flanged inlet to ANSI B16.5, factory set for a flow between 5680 and 12500 lpm (1500 to 3300 gpm). It is FM Approved for water application.

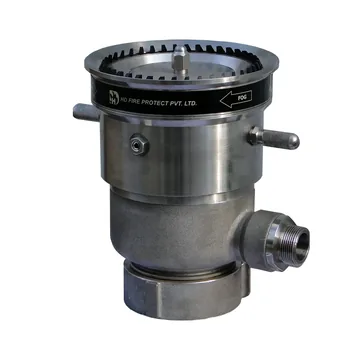

A water cum foam monitor nozzle that is self-inducting and non-aspirating, with a 2.5 inch BSP swivel female inlet and a single fixed flow set between 1500 and 2650 lpm (400 to 700 gpm).

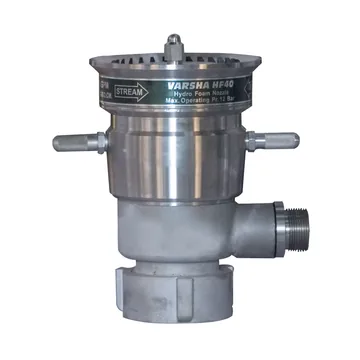

A water cum foam monitor nozzle with a 3 inch BSP swivel female inlet, self-inducting and non-aspirating, factory set for a single fixed flow. Tell us the flow your monitor needs when you enquire.

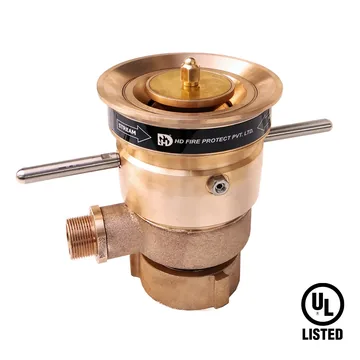

A bronze foam nozzle, self-inducting at 3% and non-aspirating, factory set for 500 or 750 gpm. It is UL Listed with the HD VAJRA 331 monitor and the VAJRA331-S oscillating monitor.

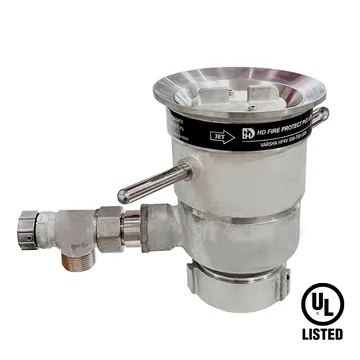

A stainless steel foam nozzle with a selectable flow of 500, 750 or 1000 gpm, self-inducting at 3% and non-aspirating. It is UL Listed with the HD VARUN 443 monitor.

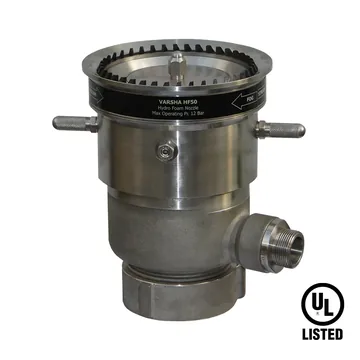

A water cum foam nozzle with a 4 inch BSP swivel female inlet, self-inducting and non-aspirating, factory set for a single fixed flow between 3030 and 4750 lpm (800 to 1250 gpm). It is UL Listed with the VARUN 443 monitor for fixed flows of 1000 and 1250 gpm.

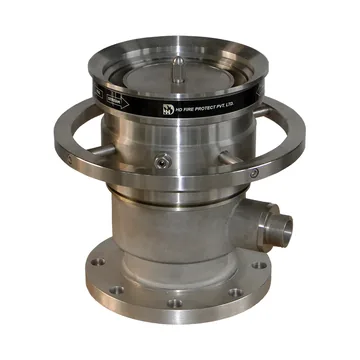

A high flow water cum foam nozzle with a 150 NB (6 inch nominal bore) flanged inlet, self-inducting and non-aspirating, factory set for a single fixed flow. Tell us the flow your monitor needs when you enquire.
First decide between water and foam. The Varsha 30, 40, 40U, 50 and 60 are fixed gallonage nozzles, meaning each is set to deliver one steady flow; they throw water and can also act as non-aspirating foam nozzles, which means no air is drawn in at the nozzle. The HF models (HF30, HF40, HF40U, HF4V, HF50 and HF60) are water cum foam nozzles that are self-inducting: they pull foam concentrate into the water stream themselves through a clear PVC pick-up hose with a stainless steel dip tube.
Then match the nozzle inlet and flow to the monitor. The Varsha water range runs from the 2.5 inch Varsha 30 (1500 to 2850 lpm) and 3 inch Varsha 40 (1500 to 3030 lpm) to the 4 inch Varsha 50 (3030 to 7575 lpm) and the 6 inch flanged Varsha 60 (5680 to 12500 lpm). Their flow is factory set at 6.9 bar (100 psi) and HD states it can be changed for other pressures up to 12 bar if required. The NW solid stream nozzles use a 3 inch BSP female inlet (NW 500, NW 700) or a 4 inch one (NW 1000).
Check the approval your project needs. Varsha 40, 50, 60 and the NW solid stream nozzles are FM Approved. Varsha 40U and HF40U are UL Listed with the HD VAJRA 331 and VAJRA331-S monitors, and Varsha HF4V and HF50 are UL Listed with the VARUN 443 monitor. A UL listing holds only for the monitor and nozzle pair named in it.
For hose lines, the CG handline nozzle works at 3.5 to 7 bar (50 to 100 psi) and can be supplied with NH, BS336 or Storz inlet connections to suit your hoses. Prices on request: call or WhatsApp +91 92440 89060.
