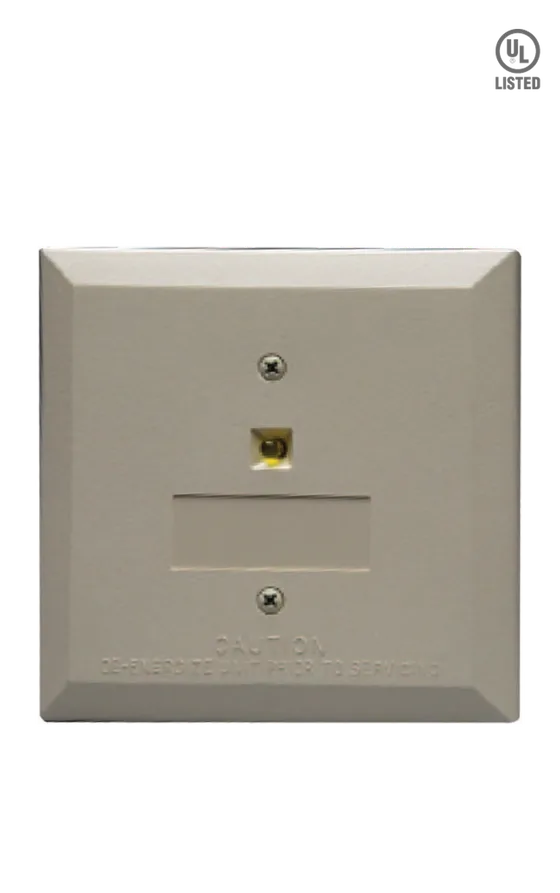

Dealer for Morley by HoneywellMorley by Honeywell HM/DISO/UL Fault Isolator Module (Morley UL)
A fault isolator module that protects the SLC loop against wire-to-wire short circuits, so other devices keep working during a short. It is required for true Style 7 operation.
- Isolates a short circuit between devices on the SLC loop
- Required for true Style 7 operation
- Up to 25 devices between isolators
- 15 to 32 VDC, standby current 450 μA maximum
- UL Listed S35595
Standards and approvals: UL Listed: S35595
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/DISO/UL |
|---|---|
| Operating voltage | 15 to 32 VDC (peak) |
| Maximum current upon activation due to short circuit | Refer to the manual for the main FACP |
| Standby current | 450 μA maximum; HM-DISO-UL is not isolated through a closed relay |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
