Bosch FAP-425-O and FAP-425-O-R Optical Smoke Detectors, AVENAR detector 4000
Analog addressable smoke detectors with one optical sensor. The FAP-425-O sets its address automatically; the FAP-425-O-R adds rotary switches for manual addressing.
Dealer for Bosch
Bosch Addressable Fire Detectors in Bhopal: AVENAR detector 4000 and FAP-520
Fire Protection System (FPS), a Bosch dealer in Bhopal, supplies Bosch analog addressable fire detectors for LSN systems: the AVENAR detector 4000 range of optical, dual-optical, heat, multisensor and CO detectors, and the ultra-flat FAP-520 detectors. FPS installs, commissions and maintains them across Madhya Pradesh.
Where to use Addressable Detectors
- Offices, hotels and commercial buildings on a Bosch LSN fire alarm system
- Hospitals and other buildings where false alarms must be kept low (multisensor and dual-optical versions)
- Clean areas where the lightest smoke should be seen early (dual-optical versions)
- Kitchens and rooms with dust or steam, using the CO multisensor versions as Bosch suggests
- Places where a smoke detector is unsuitable and heat detection is needed (FAH-425-T-R)
- Lobbies, showrooms and interiors where a flush, flat detector is preferred (FAP-520)
- Ceiling mounting in rooms with air speeds up to 20 m/s
Bosch Addressable Detectors models

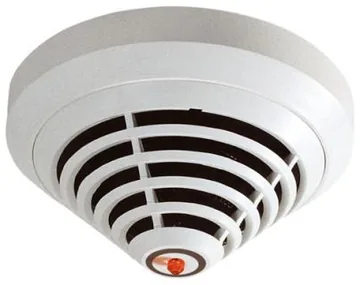

Bosch FAP-425-OT and FAP-425-OT-R Optical/Thermal Multisensor Detectors, AVENAR detector 4000
Analog addressable multisensor detectors with one optical and one heat sensor. The FAP-425-OT is auto-addressing; the FAP-425-OT-R also has rotary switches.

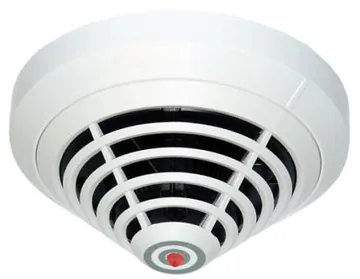

Bosch FAP-425-DO-R Dual-Optical Smoke Detector, AVENAR detector 4000
An analog addressable smoke detector with two optical sensors (Dual-Ray technology) for early detection of light smoke, with manual and automatic addressing.

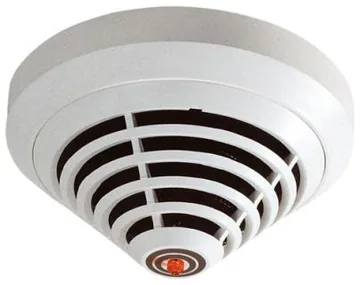

Bosch FAP-425-DOT-R Dual-Optical/Thermal Multisensor Detector, AVENAR detector 4000
An analog addressable multisensor detector with two optical sensors and one heat sensor, with manual and automatic addressing.

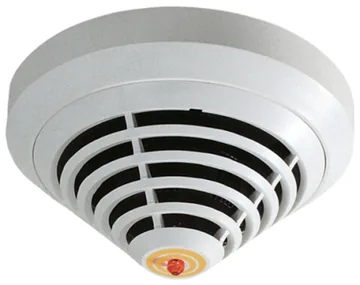

Bosch FAP-425-DOTC-R Dual-Optical/Thermal/Chemical (CO) Multisensor Detector, AVENAR detector 4000
An analog addressable multisensor detector with two optical sensors, one heat sensor and one CO gas sensor, with manual and automatic addressing.

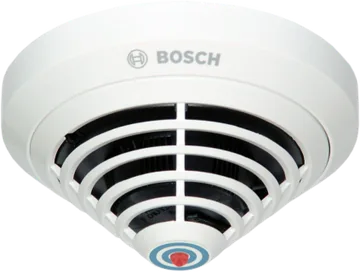

Bosch FAP-425-DOTCO-R Dual-Optical/Thermal/CO Detector with 10 Year CO Cell, AVENAR detector 4000
An analog addressable detector with two optical sensors, one heat sensor and one CO gas sensor, whose CO cell Bosch rates for a 10 year life.

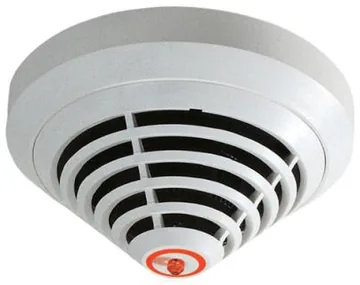

Bosch FAH-425-T-R Heat Detector, AVENAR detector 4000
An analog addressable heat detector with one thermal sensor, for fires with a rapid temperature rise or a maximum temperature, with manual and automatic addressing.
Bosch FAP-O 520 Optical Smoke Detector, FAP-520 LSN improved, Ultra-Flat, White
An analog addressable optical smoke detector in an ultra-flat design for flush ceiling installation on LSN improved systems.

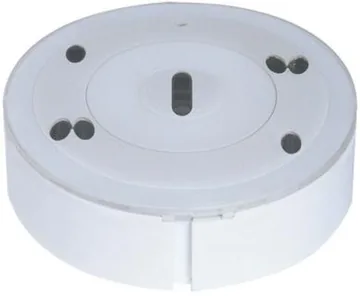

Bosch FAP-OC 520 Optical/Chemical Multisensor Detector, FAP-520 LSN improved, Ultra-Flat, White
An analog addressable multisensor detector with an optical sensor and an additional gas sensor, in an ultra-flat design for flush ceiling installation on LSN improved systems.
How to choose
An analog addressable detector has its own address on the loop, so the fire panel shows exactly which detector is in alarm. These Bosch detectors connect to LSN (Local SecurityNetwork), Bosch's addressable loop bus. In the AVENAR detector 4000 range, a model code ending in -R has rotary switches for manual addressing as well as automatic address setting; the versions without -R set their address automatically.
Choose the sensing principle for the risk. O is a single optical (smoke) sensor, OT adds a heat sensor, DO has two optical sensors (Dual-Ray) that Bosch says detect the lightest smoke, and DOT combines dual-optical and heat. The DOTC-R and DOTCO-R add a CO (carbon monoxide) gas sensor, which Bosch describes as reacting quickly to smouldering fires and suiting areas with dust, steam or cooking vapour. The DOTCO-R has a CO cell with a 10 year life and Bosch states its response sensitivity follows EN 54-26, EN 54-30 and EN 54-31. The FAH-425-T-R is a heat detector for fires with a rapid temperature rise or a maximum temperature.
The FAP-520 detectors are an ultra-flat design for flush ceiling installation on LSN improved systems, available as an optical smoke detector (FAP-O 520) or an optical/chemical multisensor (FAP-OC 520). They need the FAA-500 base; AVENAR detector 4000 detectors use bases such as the MS 400. Every model has its own approvals listed below, so check them against your project specification.
FPS supplies, installs, commissions and maintains Bosch addressable detectors in Bhopal and across Madhya Pradesh. Confirm the exact part number and base with FPS before ordering.
Frequently asked questions
What does the -R at the end of a Bosch AVENAR detector code mean?
The -R versions have rotary switches, so they can be addressed manually as well as automatically. Versions without -R, such as the FAP-425-O, use automatic address setting only.
What is a dual-optical detector?
It uses two optical sensors instead of one; Bosch calls this Dual-Ray technology and says it gives the earliest detection of the lightest smoke. In the AVENAR detector 4000 range these are the DO, DOT, DOTC and DOTCO versions.
When should I choose a Bosch detector with a CO sensor?
Bosch describes its CO detectors as reacting promptly to smouldering fires and as better suited to areas with dust, steam or cooking vapour. The FAP-425-DOTC-R and FAP-425-DOTCO-R combine CO with dual-optical and heat sensing.
Which base do these detectors need?
FAP-520 detectors need the FAA-500 base. AVENAR detector 4000 detectors fit bases such as the MS 400, MS 400 B or the FAA-MSR420 relay base.
Are Bosch AVENAR detectors approved?
Bosch lists CPR and VdS certificates for each AVENAR detector 4000 model here, and CNBOP as well for the FAP-425-DOT-R. Each model below shows the approvals its own data lists.
Does FPS install Bosch addressable detectors in Bhopal?
Yes. FPS is a Bosch dealer and supplies, installs, commissions and maintains Bosch addressable detectors in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060.
