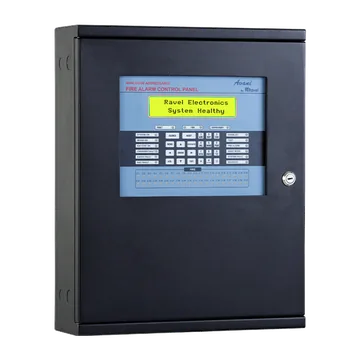

Ravel Avani Analogue Addressable Fire Alarm Panel, 1 to 4 Loops
A multi loop analogue addressable panel that starts with one loop and expands to four, for up to 1016 devices, and can be networked with other Avani panels.
Dealer for Ravel
Ravel Fire Alarm Control Panels in Bhopal
Fire Protection System (FPS), a Ravel dealer in Bhopal, supplies Ravel fire alarm control panels: the Avani multi loop and MonitI single loop addressable panels, conventional panels from 2 to 128 zones, and repeater panels for both. FPS installs, commissions and maintains them across Madhya Pradesh.
Where to use Fire Alarm Control Panels
- Small commercial buildings and small scale industries (2 and 4 zone panels)
- Schools, colleges and hostels
- Hospitals and nursing homes
- Hotels, banks and offices
- Residential and commercial towers
- Factories, warehouses and industrial plants
- Large campuses with several networked panels (Avani, RE-900 series)
- Security rooms and reception areas (repeater panels)
Ravel Fire Alarm Control Panels models

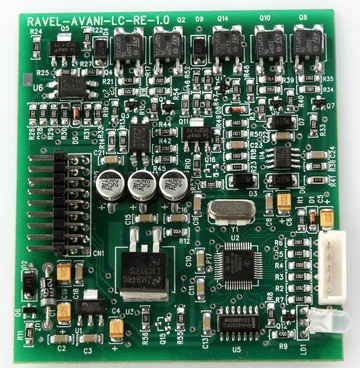

Ravel Avani Loop Card
A loop card that plugs into a slot on the Avani panel's motherboard to add one addressable loop of up to 254 devices.

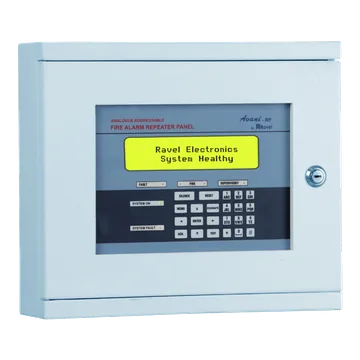

Ravel Avani Repeater Panel
A compact repeater that shows all the indications of an Avani panel, standalone or on a network, at a remote location.

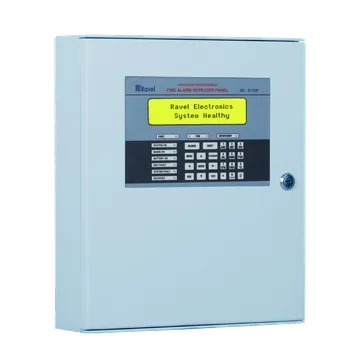

Ravel RE-517RP Active Repeater Panel for Avani
An active repeater for the Avani panel that gives full indication and control of the main panel at a remote location, with its own mains supply and battery backup.

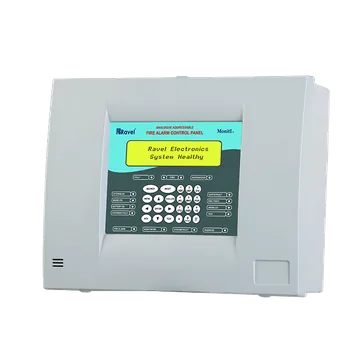

Ravel MonitI Single Loop Addressable Fire Alarm Panel
A single loop analogue addressable panel for 127 devices plus 20 loop powered sounders, with touch keypad programming and USB laptop connection.

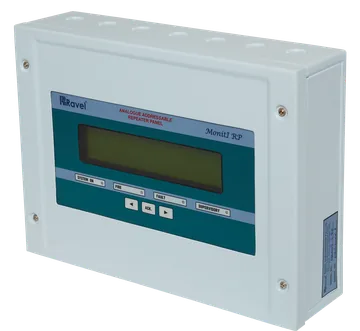

Ravel MonitI Repeater Panel
A repeater panel for the MonitI single loop panel, linked over RS 485, with a 160 character LCD.

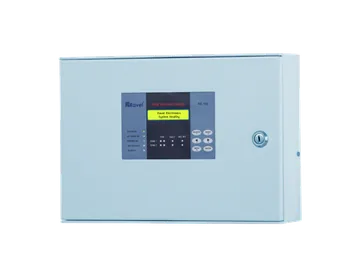

Ravel 2 Zone Conventional Fire Alarm Panel
A microprocessor based 2 zone conventional panel for small commercial buildings and small scale industries.
Ravel 2 Zone Conventional Panel with Event Log and USB
A standalone 2 zone conventional panel with an event log, built in USB and optional Ethernet and GSM modules.
Ravel 4 Zone Conventional Fire Alarm Panel
A 4 zone conventional panel for small buildings, with lock and key access and a programmable keypad lock.

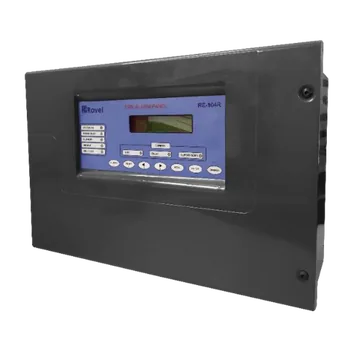

Ravel 2 and 4 Zone Conventional Panels, FR ABS Housing
Compact 2 zone (RE-102R) and 4 zone (RE-104R) conventional panels in a black FR ABS plastic housing, field programmable from the keypad.

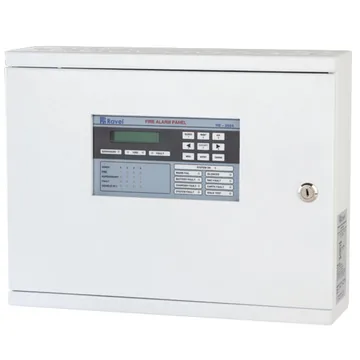

Ravel 4 Zone Conventional Fire Alarm Panel, UL 864
A microprocessor based 4 zone conventional panel that Ravel states fully complies with UL 864 and NFPA 72, for small and medium buildings.

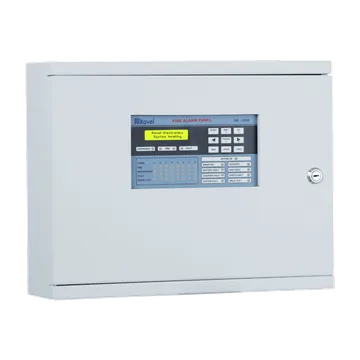

Ravel 8 Zone Conventional Fire Alarm Panel, UL 864
A microprocessor based 8 zone conventional panel that Ravel states fully complies with UL 864 and NFPA 72, for small and medium buildings.

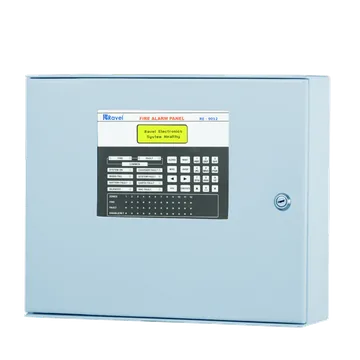

Ravel RE-900 Series Conventional Fire Alarm Panels, 12 to 128 Zones
Sizes: 12 Zone to 128 Zone
A conventional panel series from 12 to 128 zones with a 20 x 4 LCD, touch keypad, event log and RS-485 networking, for small to large buildings.

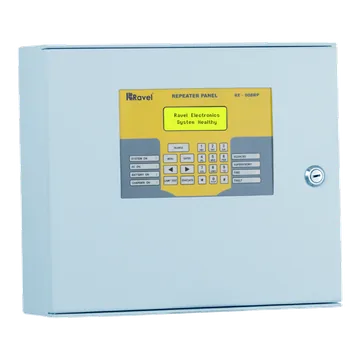

Ravel Conventional Repeater Panel, up to 8, 64 or 128 Zones
A repeater panel for Ravel conventional panels, ordered for up to 8, 64 or 128 zones, with drill and evacuate controls.

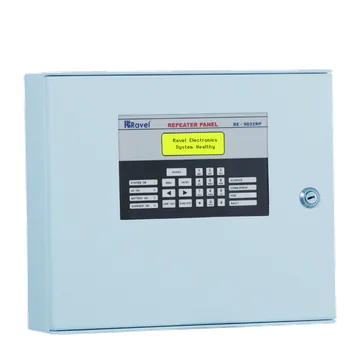

Ravel RE-900 Series Repeater Panel, up to 32, 128 or 256 Zones
A repeater panel that monitors RE-900 series panels over an RS-485 network, ordered for up to 32, 128 or 256 zones.
How to choose
Start with addressable or conventional. In an addressable system every detector, call point and module has its own address on a wired loop, so the panel shows the exact device in alarm. In a conventional system devices are wired in zones, and the panel shows which zone is in alarm. Addressable suits larger and more complex buildings; conventional suits smaller sites where knowing the zone is enough.
Ravel's addressable panels are the Avani and the MonitI. The Avani starts with one loop and expands to 4 loops with RE-LC loop cards, with up to 254 devices per loop and 1016 per panel, and up to 8 panels can be networked in a node. Ravel states it is UL certified (9th edition). The MonitI is a single loop panel for 127 devices plus 20 loop powered sounders, and Ravel states CE approval for it. Both have a touch keypad, a built in USB port for a laptop and front panel programming.
Ravel's conventional panels run from 2 to 128 zones. The RE-102, RE-102ET, RE-104 and RE-102R / RE-104R are 2 and 4 zone panels for small buildings, with a 16 x 2 LCD. The RE-2554 (4 zone) and RE-2558 (8 zone) are panels that Ravel states fully comply with UL 864, the UL standard for fire alarm control units, and NFPA 72. The RE-900 series covers 12 to 128 zones with a 20 x 4 LCD, a touch keypad and RS-485 networking, and Ravel states compliance with UL 864 and NFPA 72 and CE marking.
A repeater panel shows the main panel's status at a second location, such as a security room or reception. Choose the Avani RP or RE-517RP for the Avani, the MonitI-RP for the MonitI, and the conventional repeaters for zone panels. FPS supplies, installs, commissions and maintains Ravel fire alarm panels in Bhopal and across Madhya Pradesh.
Frequently asked questions
What is the difference between an addressable and a conventional fire alarm panel?
An addressable panel shows the exact device in alarm because each device has its own address on a loop. A conventional panel shows the zone in alarm, with devices wired in zones.
How many devices can the Ravel Avani panel handle?
Up to 254 devices on each loop and 1016 on one panel, with the panel expandable from 1 to 4 loops. Up to 8 Avani panels can be networked in a node.
Are Ravel fire alarm panels UL listed?
Ravel states that the Avani panel is UL certified (9th edition), that the RE-2554, RE-2558 and RE-900 series comply with UL 864 and NFPA 72, and that it is the first Indian manufacturer to obtain UL certification for fire alarm panels.
Which Ravel panels follow the Indian standard IS-15908:2011?
Ravel lists the 2 zone RE-102 and RE-102ET conventional panels as per IS-15908:2011.
What is a repeater panel?
It is a second display unit, linked to the main panel over RS-485, that shows alarms and faults at another location such as a security room or reception.
Does FPS install Ravel fire alarm panels in Bhopal?
Yes. FPS is a Ravel dealer and supplies, installs, commissions and maintains Ravel fire alarm panels in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060.
