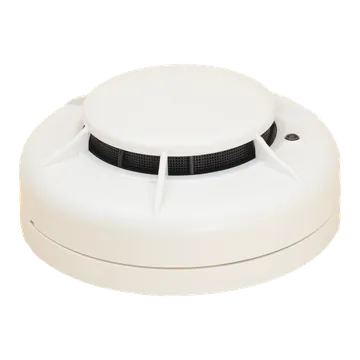

System Sensor ECO1003A Conventional Photoelectric Smoke Detector (ECO1000)
A low profile conventional photoelectric smoke detector with an optical chamber and an ASIC for quick, accurate detection, designed to extend the interval between cleanings.
Dealer for System Sensor
System Sensor Conventional Fire Detectors in Bhopal
Fire Protection System (FPS), a System Sensor dealer in Bhopal, supplies System Sensor conventional detectors: ECO1000, Series 300 and Vision smoke, heat and photo-thermal detectors, the PSE/CE and HSE/CE detectors, and intrinsically safe smoke and heat detectors. FPS installs, tests and maintains them on conventional fire alarm zones across Madhya Pradesh.
Where to use Conventional Detectors
- Offices and commercial buildings
- Malls and retail units
- Residential complexes and residential buildings
- Banks
- Schools, colleges and other educational institutions
- Laboratories
- Small industrial units and guest houses (ECO1000 heat detectors)
- Kitchens and bars where smoke detectors are unsuitable (heat detectors)
- Small, straightforward fire detection systems (Vision range)
- Hazardous areas that need intrinsically safe detectors, via an interface module
System Sensor Conventional Detectors models

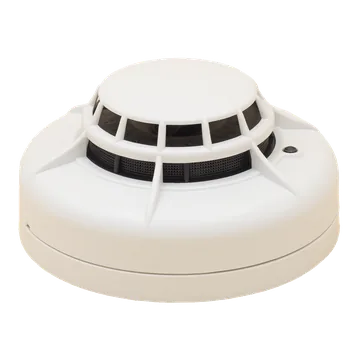

System Sensor ECO1002A Conventional Photo-Thermal Detector (ECO1000)
A multi-criteria conventional detector that combines an optical chamber and a thermal element with a microprocessor, for a faster response to real fires and fewer environmental false alarms.
System Sensor ECO1004T, ECO1005 and ECO1005T Conventional Heat Detectors (ECO1000)
Three conventional heat detectors covering 58°C and 78°C fixed temperature and rate of rise, for small to medium systems such as small industrial units, retail units and guest houses.

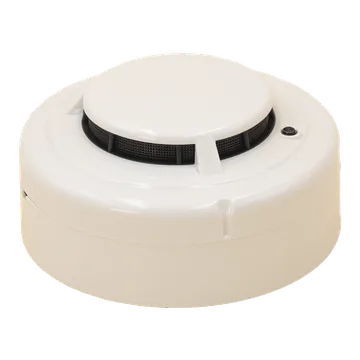

System Sensor 2351E Conventional Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector that works on a conventional zone but adds intelligent maintenance features through a hand-held tool.

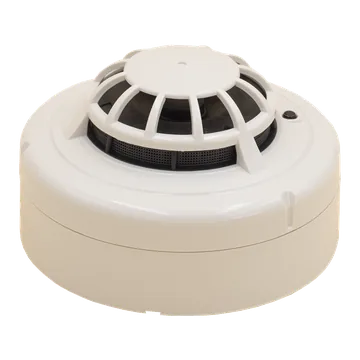

System Sensor 2351TEM Conventional Photo-Thermal Detector (Series 300)
A Series 300 photo-thermal detector whose on-board processor only signals an alarm once it is satisfied that a fire has started, reducing nuisance alarms while improving response.
System Sensor Series 300 Conventional Heat Detectors (5351TE, 5351EA, 4351EA)
Three Series 300 heat detectors: 58°C fixed temperature (5351TE), 78°C fixed temperature (4351EA) and rate of rise (5351EA), with a latching LED and an optional remote LED annunciator.
System Sensor Vision 2020P Conventional Photoelectric Smoke Detector
A low profile photoelectric smoke detector from the Vision range, for small, straightforward systems, with a response to flaming fires similar to an ionisation detector but no radioactive source.
System Sensor Vision 2020PT Conventional Photo-Thermal Detector
A Vision multi-criteria detector that combines an optical chamber and a thermal element for a faster response to real fires and fewer environmental false alarms.
System Sensor Vision Conventional Heat Detectors (2020F, 2020HF, 2020R)
Three Vision heat detectors: 58°C fixed temperature (2020F), 78°C fixed temperature (2020HF) and rate of rise (2020R), each with a latching LED.
System Sensor 2351/EIA Intelligent and Advance Photoelectric Smoke Detector (Series 300)
A Series 300 photoelectric smoke detector with three preset alarm thresholds and advanced maintenance through a remote hand-held test unit. It fits Series 100 detector bases.

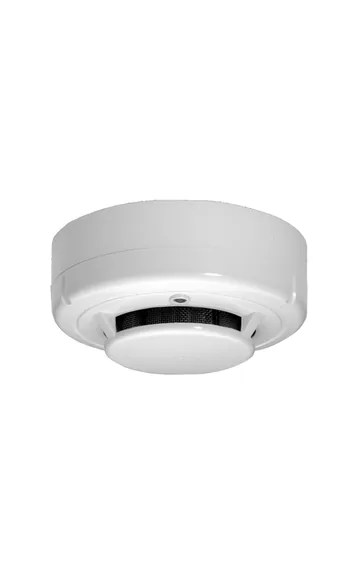

System Sensor 2351/EC Conventional Photoelectric Smoke Detector (Series 300)
A low profile Series 300 photoelectric smoke detector with a bi-colour LED, backward compatible with Series 100 detector bases for upgrading existing installations.
System Sensor 5351/E and 4351/E Conventional Heat Detectors (Series 300)
Series 300 rate of rise and fixed temperature heat detectors for places such as bars or kitchens where airborne contamination makes smoke detectors unsuitable.

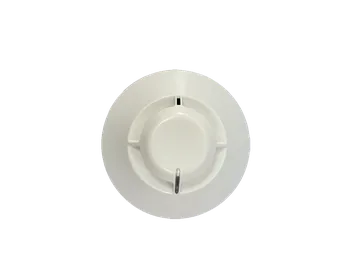

System Sensor PSE/CE Conventional Photoelectric Smoke Detector
A low profile conventional photoelectric smoke detector supplied with its base in the pack, with a magnet for field testing.
System Sensor HSE/CE Conventional Heat Detector
A low profile conventional heat detector tested to EN 54-5 Class A2R, supplied with its base in the pack.

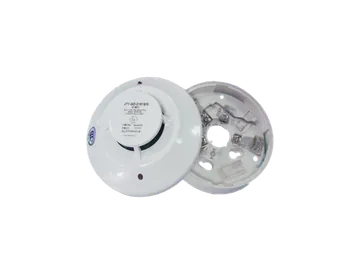

System Sensor JTY-GD-2151EIS Intrinsically Safe Conventional Smoke Detector
An intrinsically safe conventional photoelectric smoke detector for open area protection, used with 2-wire control panels through an interface module.

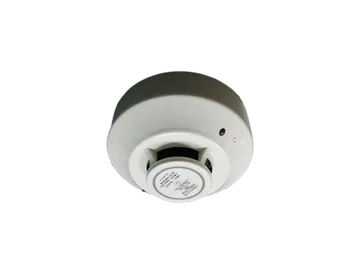

System Sensor JTWB-BCD-5151EIS Intrinsically Safe Conventional Heat Detector
An intrinsically safe conventional 2-wire heat detector with a thermistor sensing circuit, for open area protection with 2-wire panels through an interface module.
How to choose
In a conventional system detectors are wired in zones, and the panel shows which zone is in alarm rather than which detector. First pick the sensing type. Photoelectric smoke detectors use an optical chamber that works on the light scattering principle and suit most rooms. Heat detectors suit kitchens, bars and other places where smoke or airborne contamination would cause false alarms; they come as 58°C or 78°C fixed temperature types or rate of rise types. Photo-thermal (multi-criteria) detectors combine smoke and heat sensing for a faster response to real fires and fewer unwanted alarms. EN 54-7 is the European standard for smoke detectors and EN 54-5 for heat detectors.
Then pick the range. ECO1000 detectors run on 8 to 30VDC (12 or 24VDC systems), are rated -30 to +70°C, carry EN 54 and MED 96/98/EC approvals, and have a latching LED, a remote alarm test option and bases with or without a relay. Series 300 detectors act conventionally but add intelligent features: with a hand-held tool you can set sensitivity, read the last maintenance date and chamber contamination, and test the alarm, and the S300ZDU display can show which detector is in alarm. Vision detectors run on 14 to 28VDC and are aimed at small, straightforward systems, with standard and deep bases with or without a Schottky diode.
The 2351/EIA, 2351/EC, 5351/E and 4351/E are Series 300 detectors that fit Series 100 detector bases, which helps when upgrading or extending an existing installation. The PSE/CE smoke detector and HSE/CE heat detector come with the base in the pack and can be tested in the field with a magnet. For hazardous areas, the JTY-GD-2151EIS smoke detector and JTWB-BCD-5151EIS heat detector are intrinsically safe conventional detectors connected to 2-wire panels through an interface module; ask FPS for the intrinsic safety certification details for your site.
FPS supplies, installs and maintains System Sensor conventional detectors in Bhopal and across Madhya Pradesh.
Frequently asked questions
What is a conventional fire detector?
It is a detector wired on a zone circuit of a conventional fire alarm panel. When it detects a fire the panel shows which zone is in alarm, and the detector LED shows which detector operated.
What does Class A1R or A2S mean on a heat detector?
These are EN 54-5 classes for heat detectors. An R suffix means the detector also responds to a fast rise in temperature, and an S suffix means it responds only when its fixed temperature is reached.
What is special about Series 300 detectors?
They work on ordinary conventional zones but have intelligent features. A hand-held tool can set sensitivity, read maintenance data and test the alarm, and the S300ZDU zonal display can show the number of the detector in alarm.
Can I upgrade an old System Sensor installation without changing the bases?
The 2351/EIA, 2351/EC, 5351/E and 4351/E detectors are backward compatible with Series 100 detector bases, which System Sensor states allows existing installations to be upgraded and extended.
Which conventional detector suits a kitchen?
A heat detector rather than a smoke detector. The 5351/E and 4351/E are described for environments such as bars or kitchens where airborne contamination makes smoke detectors unsuitable.
Does FPS supply System Sensor conventional detectors in Bhopal?
Yes. FPS is a System Sensor dealer and supplies, installs and maintains System Sensor conventional detectors in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060.
