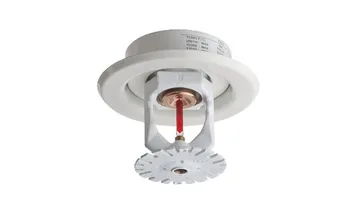

Tyco Series EC-11 and EC-14 Extended Coverage Upright and Pendent Sprinklers, K11.2 and K14.0 (TFP220)
Glass bulb extended coverage upright and pendent sprinklers with large K11.2 and K14.0 orifices, for light or ordinary hazard occupancies.
Supplier for Tyco
Tyco Extended Coverage Sprinklers in Bhopal
Fire Protection System (FPS) supplies Tyco extended coverage sprinklers in Bhopal: upright, pendent, horizontal sidewall and concealed models, each listed to protect a larger floor area than a standard coverage sprinkler. FPS installs and maintains them across Madhya Pradesh.
Where to use Extended Coverage Sprinklers
- Hotel lobbies and hotel rooms
- Offices and reception areas
- Churches and restaurant seating areas
- Schools, colleges and other educational buildings
- Dormitories, banquet facilities and conference rooms
- Hospitals, including MRI rooms with the RFII-MRI
- Long, narrow corridors and hallways, with the EC-8C and RFII-C
- Ordinary hazard rooms, with the EC-11, EC-14, SW-20 and SW-24
- Ceilings built with concrete tees, under the EC-11 and EC-14 specific application listing
Tyco Extended Coverage Sprinklers models

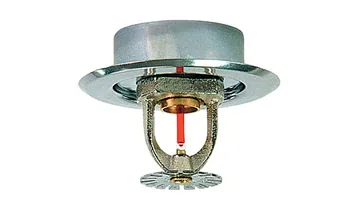

Tyco Series EC-8 Extended Coverage Light Hazard Pendent and Recessed Pendent Sprinklers, K8.0 (TFP223)
Glass bulb extended coverage pendent sprinklers for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.

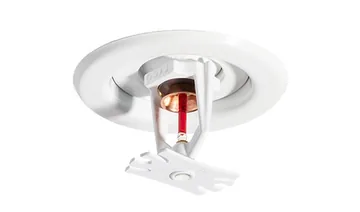

Tyco Series EC-8C Quick Response Corridor Pendent and Recessed Pendent Sprinklers, K8.0 (TFP226)
Quick response K8.0 pendent sprinklers made for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft per head.

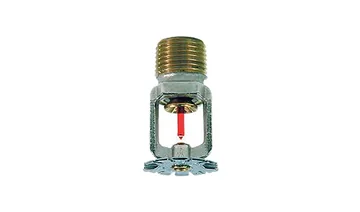

Tyco Series EC-5 Extended Coverage Light Hazard Pendent and Recessed Pendent Sprinklers, K5.6 (TFP228)
Glass bulb extended coverage pendent sprinklers with a K5.6 orifice for light hazard rooms, covering up to 400 sq ft each against 225 sq ft for a standard coverage sprinkler.

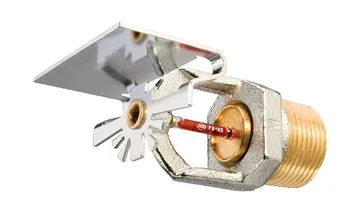

Tyco Model SW-20 and SW-24 Extended Coverage Ordinary Hazard Horizontal Sidewall Sprinklers, K11.2, Standard Response (TFP230)
Glass bulb standard response horizontal sidewall sprinklers for ordinary hazard occupancies to NFPA 13, covering up to 16 ft by 20 ft (SW-20) or 16 ft by 24 ft (SW-24) per head.

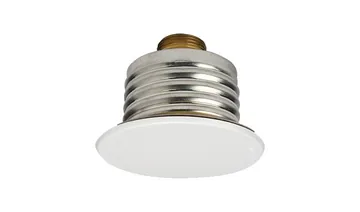

Tyco Model ELOC Extended Coverage Extra Large Orifice Concealed Pendent Sprinkler, K11.2 (TFP250)
A solder type concealed pendent sprinkler with a K11.2 orifice and a flat cover plate, for light hazard areas such as hotel lobbies, offices, churches and restaurants where water pressure is limited.

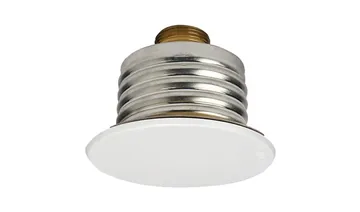

Tyco Series RFII Royal Flush II Extended Coverage Concealed Pendent Sprinkler (TY3532), K5.6, Quick Response (TFP260)
A 3 mm bulb concealed pendent sprinkler with a flat cover plate for light hazard areas such as hotel lobbies, offices, churches and restaurants, with a QREC rating up to 20 ft by 20 ft.

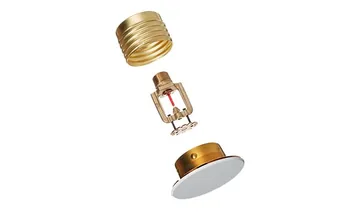

Tyco Series RFII-MRI Non-Magnetic Extended Coverage Concealed Pendent Sprinkler (TY3537), K5.6 (TFP262)
A non-magnetic 3 mm bulb concealed pendent sprinkler for the MR system room of an MRI suite, with a QREC rating up to 20 ft by 20 ft.

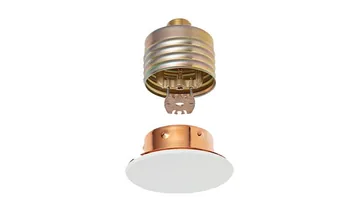

Tyco Series RFII-C Royal Flush II Concealed Corridor Pendent Sprinkler, K5.6, Quick Response (TFP263)
A 3 mm bulb concealed pendent sprinkler for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft.

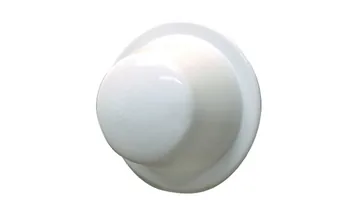

Tyco Model CHEC Concealed Horizontal Extended Coverage Sidewall Sprinkler, K8.0, Quick Response (TFP265)
A 3 mm bulb concealed sidewall sprinkler for light hazard rooms such as hotel rooms, dormitories, offices, conference rooms and hospitals, with a QREC rating up to 16 ft by 16 ft.

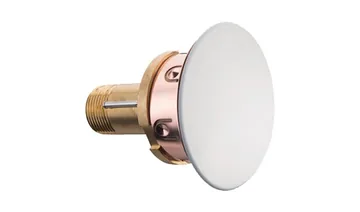

Tyco Model RFIII Flat Plate Concealed Horizontal Extended Coverage Sidewall Sprinkler, K8.0, Quick Response (TFP270)
A link type concealed sidewall sprinkler with a flat cover plate for light hazard rooms such as hotel rooms, dormitories, offices and hospitals, with QREC ratings up to 16 ft by 24 ft and 18 ft by 22 ft.

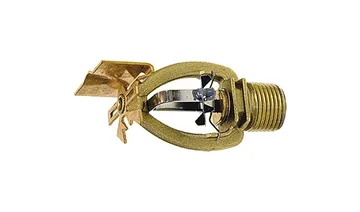

Tyco Series TY-FRL Extended Coverage Horizontal Sidewall Sprinkler, K8.0, Light Hazard (TFP280)
A solder type K8.0 extended coverage sidewall sprinkler for hydraulically calculated systems in light hazard buildings such as churches, restaurant seating areas, hotels, schools and offices.

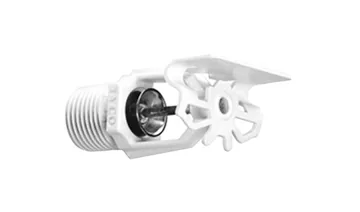

Tyco Model EC-HS Quick Response Extended Coverage Horizontal Sidewall Sprinkler, K80, VdS CEA 4001 (TFP288)
A 3 mm glass bulb extended coverage sidewall sprinkler with a metric K-factor of 80, for systems installed to VdS CEA 4001 and its Annex E under smooth ceilings in light hazard or ordinary hazard group 1.

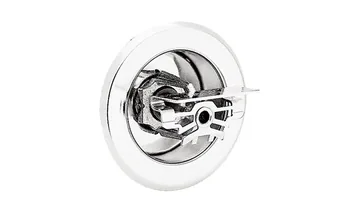

Tyco Series TY-FRB Extended Coverage Horizontal Sidewall Sprinklers, K5.6 and K8.0, Light Hazard (TFP296)
3 mm glass bulb extended coverage sidewall sprinklers for hydraulically calculated systems in light hazard buildings such as churches, restaurant seating areas, hotels, schools and offices, covering up to 16 ft wide by 24 ft long.
Tyco Series EC-5 Extended Coverage Horizontal Sidewall Sprinklers, K5.6, Light Hazard (TFP298)
Sizes: 5.6 K-factor
3 mm glass bulb extended coverage sidewall sprinklers for hydraulically calculated systems in light hazard buildings, covering up to 16 ft wide by 24 ft long with the deflector up to 450 mm below the ceiling.
How to choose
An extended coverage sprinkler is listed to protect a larger floor area than a standard coverage sprinkler, which can mean fewer heads in a room. For example, the EC-5 and EC-8 pendents cover up to 400 sq ft each in light hazard rooms, against 225 sq ft for a standard coverage sprinkler, and the SW-20 and SW-24 sidewalls cover up to 320 and 384 sq ft in ordinary hazard rooms, against 100 sq ft. These areas only apply when the system is designed to the listing, such as NFPA 13 (the US sprinkler installation standard), and most of these models are for hydraulically calculated systems, where pipe sizes and water demand are worked out for the actual layout.
Match the hazard class. Most models here are for light hazard (Tyco calls these ECLH), such as offices, hotels, churches and restaurant seating. The EC-11 and EC-14 cover light or ordinary hazard, and the SW-20 and SW-24 are extended coverage ordinary hazard (ECOH) sidewalls. The metric EC-HS is for systems built to VdS CEA 4001, in light hazard or ordinary hazard group 1.
Then choose the mounting. Upright and pendent heads (EC-11, EC-14, EC-8, EC-5) suit open ceilings, with recessed pendent versions for finished ceilings. Horizontal sidewall heads (TY-FRB, TY-FRL, EC-5, EC-HS, SW-20, SW-24) fit along a wall where pipes across the ceiling are not wanted. Concealed models hide the head behind a cover plate: ELOC, RFII and RFII-MRI pendents for ceilings, and CHEC and RFIII for walls. For long corridors, the EC-8C and RFII-C are listed for spaces up to 28 ft by 10 ft. QREC (quick response extended coverage) is the rating Tyco gives where a sprinkler's fast thermal response counts as quick response at extended coverage areas.
Approvals differ by model: Tyco lists UL and C-UL listing on most, FM approval on the EC-5, EC-8, EC-11, EC-14, TY-FRB and TY-FRL, UL listing only on the EC-8C and RFII-C, and VdS approval only on the EC-HS. FPS supplies, installs and maintains Tyco extended coverage sprinklers in Bhopal and across MP and can help check a layout against the data sheet.
Frequently asked questions
What is an extended coverage sprinkler?
It is a sprinkler listed to protect a larger floor area per head than a standard coverage sprinkler. Tyco's EC-5 and EC-8 pendents, for example, cover up to 400 sq ft in light hazard rooms, against 225 sq ft for standard coverage.
What does QREC mean on a Tyco data sheet?
QREC stands for quick response extended coverage. Tyco uses it for models such as the RFII, ELOC, CHEC, RFIII, TY-FRB and EC-5 sidewall, whose fast thermal response gives them a quick response rating at extended coverage areas.
Which Tyco sprinkler suits a long corridor?
The EC-8C pendent and the concealed RFII-C pendent are designed for long, narrow corridors and hallways in light hazard buildings, with a maximum coverage area of 28 ft by 10 ft. Tyco states they need fewer sprinklers and lower system pressure than traditional extended coverage sprinklers in these spaces.
Are there extended coverage sprinklers for ordinary hazard areas?
Yes. The EC-11 and EC-14 upright and pendent sprinklers are for light or ordinary hazard occupancies, and the SW-20 and SW-24 horizontal sidewalls are extended coverage ordinary hazard models.
Can I get a hidden extended coverage sprinkler for a hotel or office ceiling?
Yes. Tyco's concealed extended coverage options include the ELOC and RFII pendents for ceilings and the CHEC and RFIII sidewalls for walls, each with a flat or low profile cover plate.
Does FPS supply and install Tyco extended coverage sprinklers?
Yes. FPS supplies, installs and maintains Tyco extended coverage sprinklers in Bhopal and across Madhya Pradesh. Prices are on request: call or WhatsApp +91 92440 89060.
