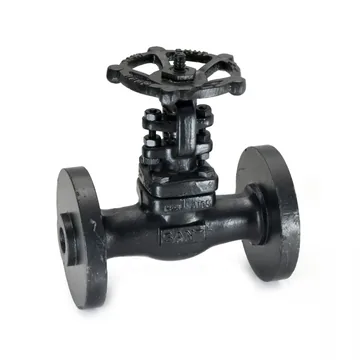

Sant Valves FSV-11 Forged Steel Gate Valve, Class 600, Flanged
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Forged carbon steel gate valve to API 602 with bolted bonnet, outside screw and yoke and rising stem. Class 600 flanged ends, 15 mm to 40 mm.
Authorised distributor for Sant Valves
Sant Valves Gate and Sluice Valves in Bhopal
Fire Protection System, an authorised Sant Valves distributor in Bhopal, supplies Sant gate and sluice valves in bronze (gun metal), cast iron, ductile iron, cast steel and forged steel, from 8 mm screwed valves to 300 mm flanged sluice valves. Many bronze and cast iron models are made to IS 778 or IS 14846 and carry the ISI mark.
Where to use Gate and Sluice Valves
- Isolation on fire hydrant ring mains and yard piping (cast iron sluice valves)
- Fire pump suction and delivery isolation in pump rooms
- Outlets of overhead and underground water tanks
- Building water supply risers and plumbing branches (bronze screwed valves)
- Water supply and distribution mains
- Oil lines in plants and workshops (bronze and cast iron models listed for oil)
- High pressure process and utility lines (forged and cast steel, Class 600 to Class 1500)
Sant Valves Gate and Sluice Valves models

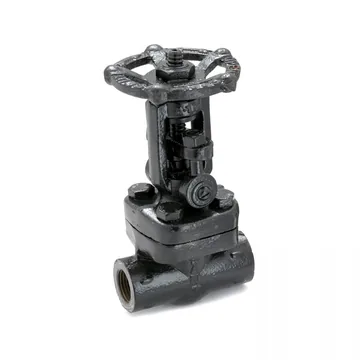

Sant Valves FSV-8A Forged Steel Gate Valve, Class 1500, Socket Weld
Sizes: 15 mm to 40 mm
High pressure forged steel gate valve conforming to BS-5352/API 602, rated Class 1500 with socket welded ends. Sizes 15 mm to 40 mm.
Sant Valves FSV-5B Forged Steel Wedge Gate Valve, Class 800, Socket Weld
Sizes: 10 mm to 40 mm
Standard bore forged steel wedge gate valve to BS 5352/API 602, Class 800, with socket welded ends. Sizes 10 mm to 40 mm.
Sant Valves FSV-5A Forged Steel Wedge Gate Valve, Class 800, Screwed NPT
Sizes: 10 mm to 40 mm
Screwed end version of Sant's Class 800 forged steel wedge gate valve, to BS 5352/API 602, with female NPT threads. Sizes 10 mm to 40 mm.

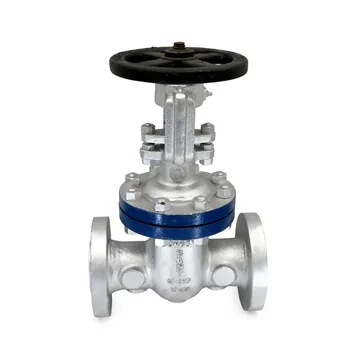

Sant Valves CS-7B Cast Steel Gate Valve, Class 600, Flanged
Sizes: 40 mm to 200 mm
Cast carbon steel (ASTM A-216 Gr. WCB) gate valve conforming to BS-1414/API 600, with OS&Y rising stem and Class 600 flanges. Sizes 40 mm to 200 mm.

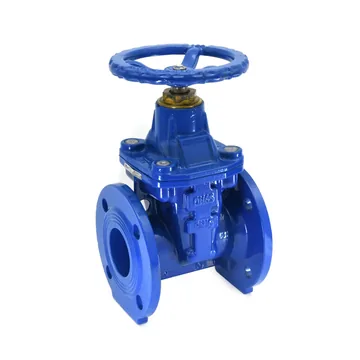

Sant Valves RSV Ductile Iron Resilient Seated Gate (Sluice) Valve, PN-16
Sizes: 50 mm to 300 mm
Ductile iron sluice valve with a non rising stem and a soft, EPDM covered wedge that seals without a metal seat. PN-16, flanged to IS-1538 with drilled flanges, 50 mm to 300 mm.

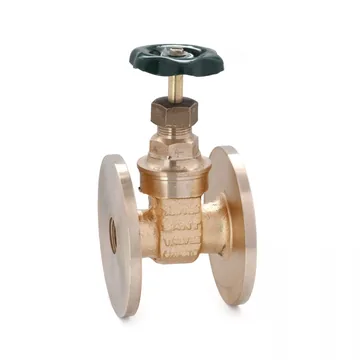

Sant Valves SBM-3 Bronze Gate Valve, Flanged (BS 10 Table D)
Sizes: 15 mm to 150 mm
SBM standard pattern gun metal gate valve with inside screw and non rising stem, flanged to BS 10 Table D. Sizes 15 mm to 150 mm, for water and oil.

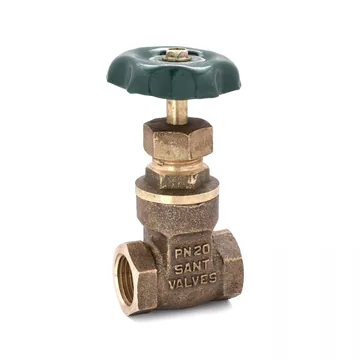

Sant Valves SBM-2 Bronze Gate Valve, Screwed BSP
Sizes: 8 mm to 100 mm
SBM standard pattern gun metal gate valve with non rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.

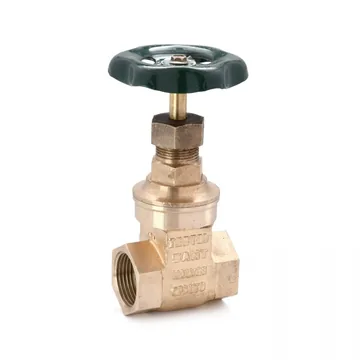

Sant Valves SBM-1 Bronze Gate Valve, Peglar Type PN-20, Screwed BSP
Sizes: 8 mm to 100 mm
Peglar type PN-20 gun metal gate valve with non rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.

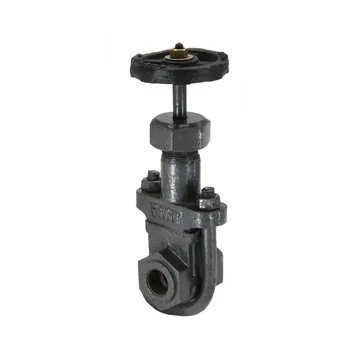

Sant Valves CI-14 Cast Iron Gate Valve, Clip Pattern, Screwed
Sizes: 15 mm to 80 mm
Small bore cast iron gate valve with clamped bonnet and rising stem, a renewable seat and Cu-alloy trim. Screwed BSP ends, 15 mm to 80 mm, for water and oil.
Sant Valves CI-13 Cast Iron Gate Valve, All Iron, Clip Pattern, Screwed
Sizes: 15 mm to 80 mm
All iron version of Sant's clip pattern gate valve, with integral seat and no bronze trim. Screwed BSP ends, 15 mm to 80 mm, for water and oil.

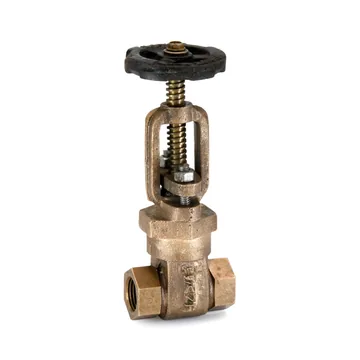

Sant Valves IS-33 Bronze Gate Valve, OS&Y, IS 778 Class 2, Screwed
Sizes: 15 mm to 100 mm
Gun metal gate valve with outside screw and yoke and rising stem, made as per IS-778 Class 2. Screwed ends, 15 mm to 100 mm, for water and oil.

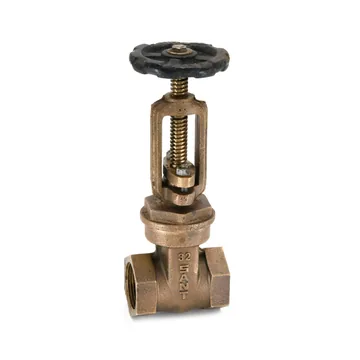

Sant Valves IS-31 Bronze Gate Valve, OS&Y, IS 778 Class 1, Screwed
Sizes: 15 mm to 100 mm
Class 1 version of Sant's OS&Y bronze gate valve, made as per IS-778 with a rising stem. Screwed ends, 15 mm to 100 mm, for water and oil.

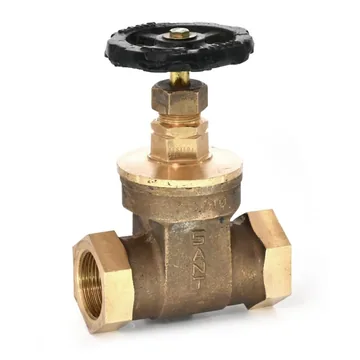

Sant Valves IS-7 Bronze Gate Valve, IS 778 Class 3, Screwed
Sizes: 15 mm to 50 mm
Class 3 gun metal gate valve made to IS-778:1971, with inside screw and non rising stem. Screwed ends, 15 mm to 50 mm, for water and oil.

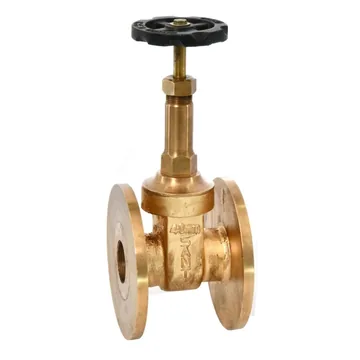

Sant Valves IS-6A Bronze Gate Valve, Rising Stem, IS 778 Class 2, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with inside screw and rising stem. Flanged ends, 15 mm to 100 mm, for water and oil.

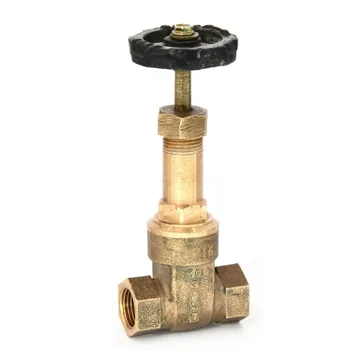

Sant Valves IS-5A Bronze Gate Valve, Rising Stem, IS 778 Class 2, Screwed
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with rising stem and screwed ends. Sizes 15 mm to 100 mm, for water and oil.

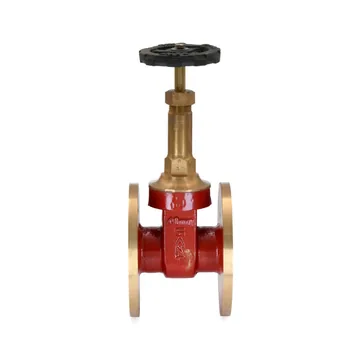

Sant Valves IS-6 Bronze Gate Valve, Non Rising Stem, IS 778 Class 2, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with non rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.

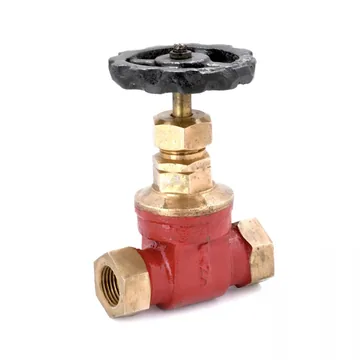

Sant Valves IS-5 Bronze Gate Valve, Non Rising Stem, IS 778 Class 2, Screwed
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 2 with non rising stem and screwed ends. Sizes 15 mm to 100 mm, for water and oil.

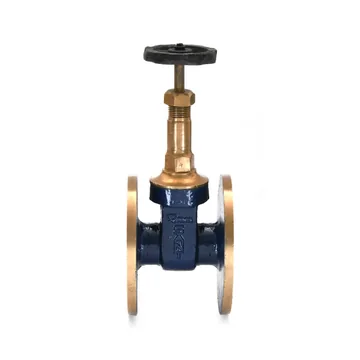

Sant Valves IS-4 Bronze Gate Valve, Rising Stem, IS 778 Class 1, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.

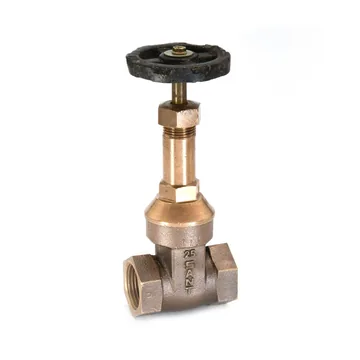

Sant Valves IS-3 Bronze Gate Valve, Rising Stem, IS 778 Class 1, Screwed
Sizes: 8 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with rising stem and screwed ends. Sizes 8 mm to 100 mm, for water and oil.

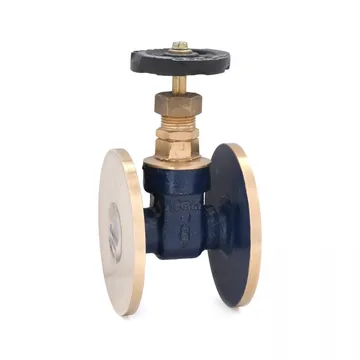

Sant Valves IS-2 Bronze Gate Valve, Non Rising Stem, IS 778 Class 1, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with non rising stem and flanged ends. Sizes 15 mm to 100 mm, for water and oil.

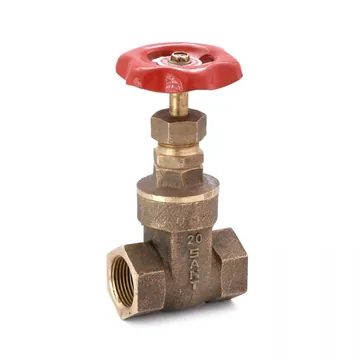

Sant Valves IS-1 Bronze Gate Valve, Non Rising Stem, IS 778 Class 1, Screwed
Sizes: 8 mm to 100 mm
ISI marked gun metal gate valve to IS 778 Class 1 with non rising stem and screwed ends. Sizes 8 mm to 100 mm, for water and oil.

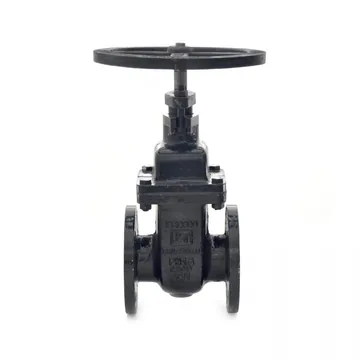

Sant Valves CR-32B Cast Iron Sluice Valve, IS 14846, PN 16, Non Rising Stem
Sizes: 50 mm to 300 mm
ISI marked cast iron sluice valve to IS 14846, rated PN 16, with bolted bonnet and non rising stem. Drilled IS 1538 flanges, 50 mm to 300 mm, for water mains.

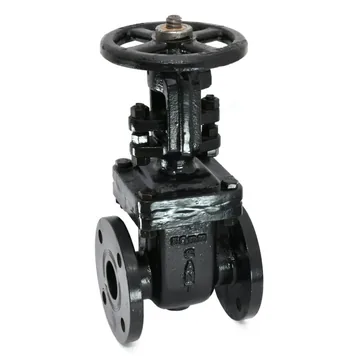

Sant Valves CR-32A Cast Iron Sluice Valve, PN 10, OS&Y Rising Stem
Sizes: 50 mm to 300 mm
Cast iron wedge gate sluice valve with outside screw and yoke and rising stem, rated PN 10, with face to face dimensions as per IS 14846. Drilled IS 1538 flanges, 50 mm to 300 mm.

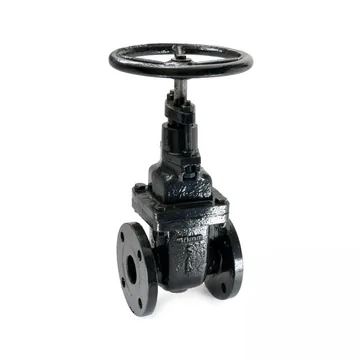

Sant Valves CR-32 Cast Iron Sluice Valve, IS 14846, PN 10, Non Rising Stem
Sizes: 50 mm to 300 mm
ISI marked cast iron sluice valve to IS 14846, rated PN 10, with bolted bonnet and non rising stem. Drilled IS 1538 flanges, 50 mm to 300 mm, for water mains.

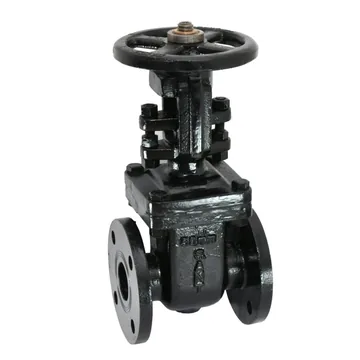

Sant Valves CR-19B Cast Iron Sluice Valve, PN 16, OS&Y Rising Stem
Sizes: 50 mm to 300 mm
PN 16 cast iron wedge gate sluice valve with outside screw and yoke and rising stem, face to face as per IS 14846. Drilled IS 1538 flanges, 50 mm to 300 mm.

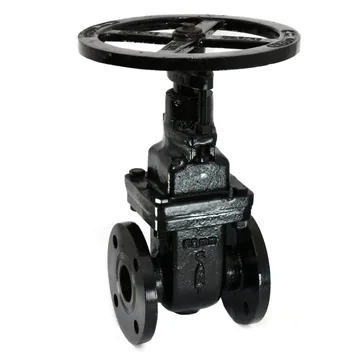

Sant Valves CR-19A Cast Iron Sluice Valve, Non Rising Stem
Sizes: 50 mm to 300 mm
Cast iron wedge gate sluice valve with bolted bonnet, inside screw and non rising stem, body tested at 2.4 MPa and seat tested at 1.6 MPa minimum. Drilled IS 1538 flanges, 50 mm to 300 mm.

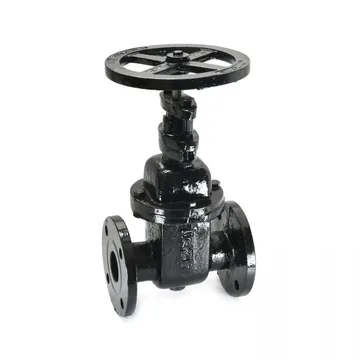

Sant Valves CR-19 Cast Iron Sluice Valve, IS 780 Dimensions, PN 10
Sizes: 50 mm to 300 mm
PN 10 cast iron wedge gate sluice valve with face to face and flange dimensions as per IS 780, non rising stem and renewable wedge. Sizes 50 mm to 300 mm, for water.
How to choose
Gate and sluice valves both work by lifting a wedge clear of the flow, so when fully open the water passes almost straight through. They are meant to be fully open or fully shut for isolation, not for regulating flow. In India the larger flanged cast iron gate valves used on water mains are usually called sluice valves. Sant's CR series sluice valves are flanged to IS 1538, from 50 mm to 300 mm, and the CR-32 and CR-32B are made to IS 14846 (the Indian Standard for sluice valves for water works) and are ISI marked.
Check the stem type. On a non rising stem (NRS, inside screw) valve the handwheel turns the stem without it moving up, which suits pits, ducts and tight spaces. On a rising stem valve, and especially an outside screw and yoke (OS&Y) valve, the stem climbs as the valve opens, so its position can be seen from a distance. For sluice valves, CR-32A and CR-19B are OS&Y rising stem; CR-19, CR-19A, CR-32 and CR-32B are non rising stem.
For bronze valves, choose the IS 778 class and the ends. Class 1 valves are body tested at 1.5 MPa and Class 2 at 2.4 MPa, and the IS-7 is Class 3 with a 50 kg/cm² body test. Screwed valves have female threads to IS 554 (parallel) or BSP to BS 21; flanged valves have IS 778 or BS 10 flanges, undrilled. The RSV is a resilient seated ductile iron valve with an EPDM covered wedge, PN-16, with drilled IS-1538 flanges.
Forged steel (FSV series, API 602 or BS 5352, Class 600 to Class 1500) and cast steel (CS-7B, API 600 or BS-1414, Class 600) valves are for high pressure industrial lines. None of the valves on this page are listed as UL or FM approved; where the fire design calls for listed valves, choose from Sant's UL Listed and FM Approved range. FPS supplies and installs Sant valves in Bhopal and across Madhya Pradesh.
Frequently asked questions
What is the difference between a gate valve and a sluice valve?
Both isolate a line by raising a wedge out of the flow. Sluice valve is the common Indian name for larger flanged cast iron gate valves on water mains, such as Sant's CR series from 50 mm to 300 mm.
What do Class 1, Class 2 and Class 3 mean on Sant bronze gate valves?
They are pressure classes under IS 778, the Indian Standard for copper alloy gate, globe and check valves. Sant body tests Class 1 valves at 1.5 MPa and Class 2 valves at 2.4 MPa, and the Class 3 IS-7 at 50 kg/cm².
Which Sant sluice valves are ISI marked?
The CR-32 (PN 10) and CR-32B (PN 16) cast iron sluice valves are made to IS 14846 and ISI marked. The CR-32A and CR-19B follow IS 14846 face to face dimensions, and the CR-19 follows IS 780 face to face and flange dimensions.
Should I choose a rising stem or non rising stem valve?
Choose rising stem or OS&Y where you want to see at a glance whether the valve is open, and non rising stem where headroom is limited or the valve sits in a pit. Sant offers both in bronze and in cast iron sluice valves.
Can these valves be used on fire hydrant lines?
Sant lists its cast iron sluice valves and the RSV resilient seated valve for water service, and FPS can advise on the pressure class your hydrant line needs. If the consultant or insurer requires UL Listed or FM Approved valves, use the Sant UL/FM range instead.
How do I get a price for Sant gate valves?
Prices depend on model, size and quantity and are given on request. Call or WhatsApp +91 92440 89060 with your list and FPS will quote for supply or supply with installation across MP.
